In-Situ Vane Shear Test Apparatus

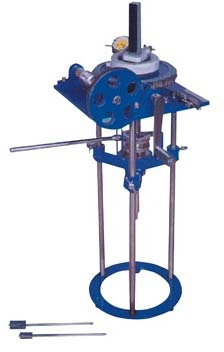

We provide another soil testing apparatus named as In-Situ Vane Shear Test Apparatus. The Apparatus is known for efficient execution of situ vane shear test from the bottom of a bore hole to analyze the place of adhesive deposits in shearing resistance. The apparatus is provided by the manufacturing concern at an economical price and is known for is durable quality among our clients. Specifications The equipment consists of a torque applicator assembly mounted on a base, a gear wheel, which is marked in degrees, holds a torque ring and is geared to a crank, the torque ring is a split ring & deforms as torque is applied & the deformation is indicated by a dial gauge. A calibration 2 chart to convert dial gauge readings to torque force in kgscm is supplied. A pointer is provided For registering the rotations of the vane, a detachable stand is provided to anchor the instrument an attachment to securely hold the string of rods is provided.

• Vane ( with vane rod ) 37.5mm dia x 75mm high 1 no.
• Vane ( with vane rod ) 50.0mm dia x 100mm high 1 no.
• Torque rod ( square cross section) 0.6mts long 1 no.
• Rods quick couplind type, 1 mtr. long 1 no.
• Rods quick coupling type, 1 ½ mtr. long 1 no.
• Dummy rod, corresponding to 37.5mm dia vane 1 no.
• Dummy rod , corresponding to 50.0mm dia vane 1 no.
• Features Of 5 In-Situ Vane Shear Test Apparatus
  • Consist of a Dummy Rod, with specs 50.0 mm dia vane 1 no.
  • In-Situ Vane Shear Test Apparatus also consist of dummy rod, with specs, 37.5 mm dia vane 1 no.
  • Rods are provided with quick coupling type
  • Packaging is done carefully
