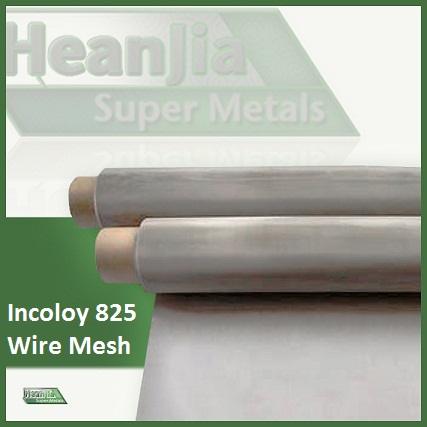

Incoloy 825 Wire Mesh Screen, Brand Name : Heanjia 0.05mm-10.0mm

We are offering incoloy wire mesh screen.
The incoloy 825 wire mesh screen is produced for using in the various corrosive environments. It provides adequate resistance to the many corrosion media such as chloride ion stress corrosion cracking, oxidation and reduction media. It offers large resistance to the pitting and crevice corrosion and different oxidizing agents such as oxidizing salts and acids.
The incoloy 825 wire mesh screen offers intense resistance to the localized and interranular corrosion in the different conditions. It has excellent mechanical features at cryogenic to intermediate temperature levels. It adheres in the strong acidic medium easily.
mesh specifications
mesh size 0.2meshinch to 250meshinch
thickness 0.1mm-5.0mm
aperture rate 10%-90%
chemical composition of 825 wire mesh screen:-
% ni cr fe c mn si cu mo al ti p s
min. 38 19.5 bal. 1.5 2.5 1 0.6
max. 46 23.5 bal. 0.05 1 0.5 3 3.5 0.2 1.2 0.02 0.03
mechanical properties of incoloy 825 wire mesh screen:-
alloy tensile strength yield strength elongation (a 5 %) brinell hardness
incoloy 825 550 rm nmm2 220 r p0. 2nmm2 30 =200 hb
the incoloy 825 alloy provides good weldability and it is easily welded by the entire traditional techniques.
resistance properties of incoloy 825 wire mesh screen
1.chloride ion stress corrosion cracking
2.oxidation and reduction corrosion
3.pitting and crevice corrosion
4.intergranular and localized corrosion
applications of incoloy 825 wire mesh screen
1.pollution control houses
2.nuclear fuel treatment
3.chemical processing
4.pickling
