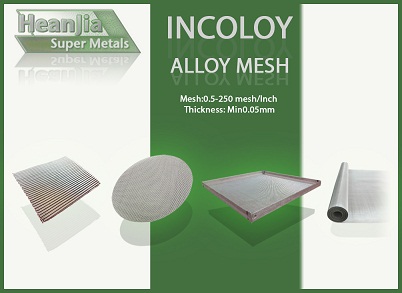

Incoloy 926 Wire Mesh Screen, Brand Name : Heanjia 0.05mm-10.0mm

We are offering incoloy wire mesh screen.
The incoloy 926 wire mesh screen exhibits austenitic stainless steel structure and offers tremendous resistance to pitting and crevice corrosion. It restricts the intergranular corrosion, local corrosion, concentrated acids, sea water, salt and organic acids
the incoloy 926 wire mesh screen causes excellent resistance to oxidation. It is commonly implemented in the chemical containers, desalination and seawater applications. It is metallographically stable and used in the many commercial operations.
mesh specifications
mesh size 0.2meshinch to 250meshinch
thickness 0.1mm-5.0mm
aperture rate 10%-90%
chemical composition of incoloy 926 wire mesh screen
% ni cr fe c mn si cu mo n ti p s
min. 24 19 balance 0.5 6.0 0.15 0.6
max. 26 21 0.02 2 0.5 1.5 7.0 0.25 1.2 0.03 0.01
physical properties of incoloy 926 wire mesh screen
density 8.1 gcm3
melting point 1320- 1390oc
mechanical properties of incoloy 926 wire mesh screen:
tensile strength
rm nmm2 yield strength
rp0.2nmm2 elongation
a5 %
650 295 35
resistance properties of incoloy 926 wire mesh screen
1. Pitting and crevice corrosion
2. Intergranular corrosion, localized corrosion
3. Sea water, organic acids and salts
4. Halide solutions
applications of incoloy 926 wire mesh screen
1. Oil wells
2. Marine engineering
3. Chemical tanks
4. Reverse osmosis
