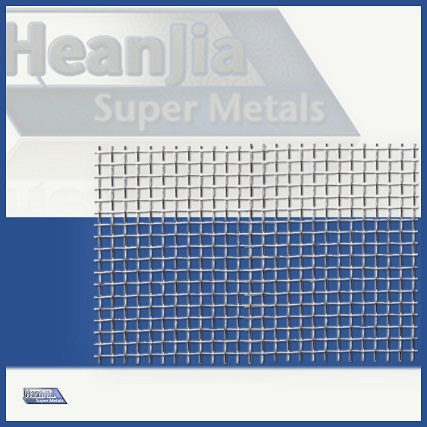

Inconel 706 Wire Mesh Screen, Brand Name : Heanjia 0.05mm-10.0mm

We are offering inconel 706 wire mesh screen.
Inconel 706 wire mesh screen provides wide resistance to oxidation and reduction. It offers similar properties as inconel 718 alloy. But it is more easily fabricable via machining and utilized in the various applications that need high strength and easy fabricability.
The inconel 706 wire mesh screen is popularly implemented in aeronautics engineering, compressor discs, gas turbines and various other commercial applications.
Mesh specifications
mesh size 0.2meshinch to 250meshinch
thickness 0.1mm-5.0mm
aperture rate 10%-90%
chemical composition of inconel 706 wire mesh screen
element min max
carbon -- 0.06
manganese -- 0.35
silicon -- 0.35
phosphorus -- 0.020
sulfur -- 0.015
nickel + cobalt 39.0 44.0
chromium 14.5 17.5
cobalt -- 1.00
iron bal.
Aluminum -- 0.40
titanium 1.50 2.00
boron -- 0.006
copper -- 0.30
cb + ta 2.50 3.30
physical properties of inconel 706 wire mesh screen
density 8.05 mgcu m
melting point 2434-2499 of
specific heat at 70of btulb-of 0.106
curie temperature of
properties of inconel 706 wire mesh screen
1. Broad resistance to corrosion in the numerous corrosive conditions.
2. Large mechanical strength and fabrication competency
applications of inconel 706 wire mesh screen
1. Aeronautics engineering
2. Gas turbines
3. Compressor discs and shafts
