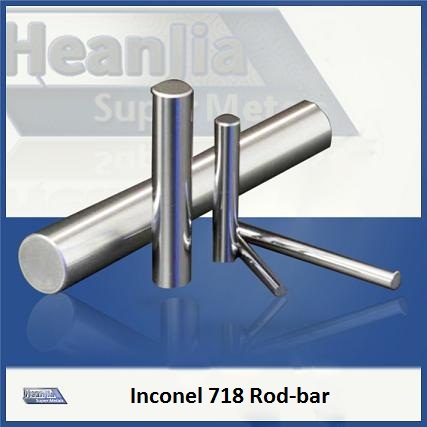

Inconel 718 Rod, Brand Name : Heanjia

We are offering inconel 718 rod.
The inconel 718 rod is precipitation tough and large strength to creep rupturing ad resistance to stress corrosion cracking at the very high temperature up to 700oc or 1300of. It is utilized in gas turbines, rocket motors, space craft, nuclear plants, tooling and pumping.
Specification:
rod size diameter: 3mm above, length: 20mm above
chemical composition of inconel 718 rod
ni 50-55 %
fe bal.
Cr 17 – 21 %
cu 0.30
mo 28.0-3.30 %
nb 4.75-5.50
c 0.08 %
mn 0.35 %
p 0.015
s 0.015
si 0.35
ti 0.65-1.15
al 0.20-0.80
co 1.00
b 0.006 %
physical properties of inconel 718 rod
alloy density
(lbsin³) 68f melting range
(°f) thermal expansion
(inin°fx10-6) electrical resistivity (ohmscirmilft.) 68f
inconel 718 0.296 2300 – 2440 7.2 (70 – 200f) 753
mechanical properties of inconel 718 rod
test temperature 0.2% yield strength tensile strength elongation %
°f °c ksi mpa ksi mpa 21.0
200 93 170 1172 204 1407 20.0
400 204 163 1124 198 1365 20.0
600 316 159 1096 195 1344 19.0
characteristics of inconel 718 rod
1. highly resistant to chloride and sulfide stress corrosion cracking.
2. weldable
3. high yield and tensile strength
4. excellent mechanical properties and fatigue strength
applications of inconel 718 rod
1. nuclear reactors
2. gas turbine engine components
3. gas turbine engine parts
4. fasteners, springs, tubing hangers
