Indented Prestressed Concrete Wire

MOQ20 Metric Ton
MaterialSteel
Packaging TypeMetallic
PurityImproved Proportional Limit, Higher Ductility, Higher Strengths
UsageConcrete Reinforcement For Electric Poles, Panels, And Precast Pipes,Pre-stressed Concrete Structures
Number Of FlowerHigh Tensile Wire
Supply TypeManufacturer, Exporter, Supplier, Trader
Preferred Buyer Location All over the world

Company Information

Em Bypass, Kolkata, West Bengal

4.4/5

(16)

Ask for more detail from the seller

Report incorrect details

Number Of FlowerHigh Tensile Wire
MaterialSteel
PurityImproved Proportional Limit, Higher Ductility, Higher Strengths
Packaging TypeMetallic
UsageConcrete Reinforcement For Electric Poles, Panels, And Precast Pipes,Pre-stressed Concrete Structures

Details :

“Pre-stress” is artificial compression stress to compensate tensile stress to be exerted from exterior force.
“Pre-stressed concrete” is a concrete construction material, which is placed under-compression prior to it supporting any applied loads (i.e. it is "pre" stressed)
Pre-stressed Concrete wire (indented) is High Tensile Wire for pre-stresses in concrete structure by virtue of improved proportional limit, higher ductility combined with higher strengths. It has its primary application in Concrete

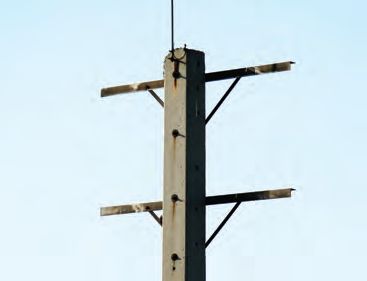

reinforcement electric poles, Concrete panels and Pre stressed concrete pipes for precast segment. PC wires may be of various sizes and have different indentations as per its application and customer’s requirements.

Nominal diameter (mm)	Tolerance in diameter (mm)	Tensile strength N/mm2	Elongation (%) minimum	Bending test		Nominal mass g/m	Tolerance g/m	Stress reduction after Relaxation Test at 200 Deg C ± 20 Deg C
Nominal diameter (mm)	Tolerance in diameter (mm)	Tensile strength N/mm2	Elongation (%) minimum	Times 1800 Deg No less than	radius of JAW (mm)	Nominal mass g/m	Tolerance g/m	100 h	1000 h
4.00 mm	± 0.05	1715	0.03	3	12.5	98.9	±2.00	> 3.5%	>5.0%
3.00 mm	± 0.05	1865	0.03	3	10	55.5	±1.50	> 3.5%	>5.0%
2.50 mm	± 0.05	2010	0.03	3	7.5	38.5	±1.25	> 3.5%	>5.0%
