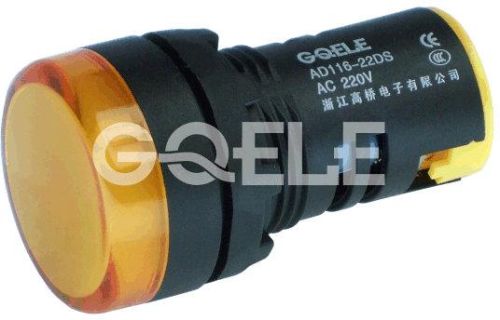

22mm Panel Mount Indicator Light (indicator Lamp)
1. Model:
ad116-22ds Indicator Light (pilot Light)
ad116-22dsfs- Flashing Indicator Light
ad116-22ds/k – Lvp Indicator Light
ad116-22ds/f – Dischargeable Light
2. Features:
led Round Flush Lens.
high Brightness Led Lighting
ultrashort Type, Small Volume
fast and Easy to Install
mounting Size:φ22/25mm Common Use
protection Degree of the Top Part: Ip65. Ip67 is Available On Request.
color: R-red, Y-yellow, B-blue, G-green, W-white
rated Voltage: 6v, 12v, 24v, 110v – Ac/dc
220v, 380v, 440v Ac
remark: Gq/ad22-22ds – Common Brightness Model
3. Application
this Series Indicator Light ( Pilot Light) are Used as Indicating, Accidental Signals and other Pilot Signal of Instrument Circuit in the Areas of Electric Power, Telecommunication, Machinery, Marine, Textile, Printing, Mining Etc.
4. Technical Parameters
life of Continuous Working ≥ 30000h
allowable Instantaneous Voltage Fluctuation: ±20%
comparative Tracking Index (cti)≥100,Flame Retardant
power Frequency Withstand Voltage: 2.5kv
insulation Resistance: ≥50mω
