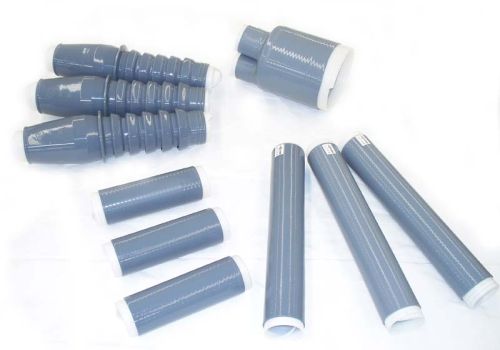

Indoor Cold Shrinkable Power Cable Terminations

We are offering indoor cold shrinkable power cable terminations. O high reliability
o excellent insulating properties
o good hydrophobic properties
o excellent high and low temperature properties
o superior track and erosion resistance
o resistant to weathering
o uv light and aging
o easy to install and no heatflames required
o standard: iec 60502.4
• superior performance:
o 35kv cold shrinkable power cable accessories (indoor termination, outdoor termination and joint) are without any flashover, breakdown and heat occurred at 120kv voltage for 80 minutes
o 20kv cold shrinkable power cable accessories (indoor termination, outdoor termination and joint) are without any flashover, breakdown and heat occurred at 54kv voltage for 80 minutes
o 15kv cold shrinkable power cable accessories (indoor termination, outdoor termination and joint) are without any flashover, breakdown and heat occurred at 45kv voltage for 80 minutes
o greatly promotes reliability and stability of power cable line working
• available types:
o cold shrink indoor terminations for 35kv 1-core cables
 nly-351.1:
cross section: 50 to 120mm2
insulation outer diameter: 27 to 38mm
 nly-351.2:
cross section: 150 to 240mm2
insulation outer diameter: 34 to 46mm
 nly-351.3:
cross section: 300 to 500mm2
insulation outer diameter: 40 to 50mm
o cold shrink indoor terminations for 35kv 3-core cables
 nly-353.1:
cross cross section: 50 to 120mm2
insulation outer diameter: 27 to 38mm
 nly-353.2:
cross cross section: 150 to 240mm2
insulation outer diameter: 34 to 46mm
 nly-353.3:
cross cross section: 300 to 500mm2
insulation outer diameter: 40 to 50mm
