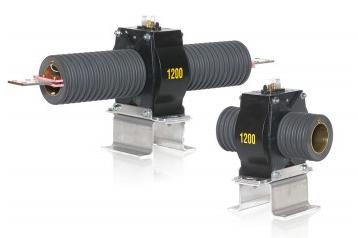

Indoor Current Transformer

We are offering abb kit-60, -75, -11, and -15 indoor current transformers product features 7524a01g01.
abb kit-60, -75, -11, and -15 indoor current transformers product features 7524a01g01
− 5 - 25 kv, indoor
− 60, 75, 110, and 150 kv bil, 60 hertz
− primary amperes: 400 - 4000
application
the kit-60, -75, -11, and -15 indoor current transformers are designed for high current metering and relaying. All ratios are available with a 3.25" diameter primary opening. Units with ratios 2000 amperes and below are available with primary bars and units with ratios above 2000 amperes are available with spade terminals.
primary ampere rating rating thermal ieee metering style number
factor rating accuracy kit60
800 3 80 0.3b 0.9 7524a01g01
1200
2 80 0.3b-1.8 7524a01g02
1500 2 100 0.3b-1.8 7524a01g03
2000 2 100 0.3b-1.8 7524a01g04
2500 1.5 100 0.3b-1.8 7524a42g11
3000 1.5 100 0.3b-1.8 7524a01g05
4000 1.5 100 0.3b-1.8 7524a01g06
600/1200 2 80 0.3b-1.8 7524a01g07
1000/2000 2 100 0.3b-0.9 7524a01g08
1500/3000 1.33 100 0.3b-1.8 7524a01g10
2000/4000 1.5 100 0.3b-1.8 7524a01g09.
