Contact Supplier1/3sony high sensitivity ccd
high resolution:600tvl(b/w 650tvl)
30pcs ï¿ 5 ir led; 30m ir range
4mm cs lens (6mm,8mm optional)
osd menu(english/chinese/spanish/russian)
rs-485 control
dwdr(digital wide dynamic range)
2d-dnr, awb, agc,blc
casing: white/black(optional)
specifications:

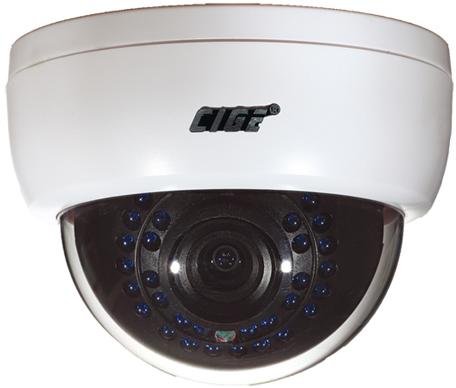

model:dis-rh916hd
image sensor:1/3sony high sensitivity ccd
effective pixels: pal: 750(h)× 582(v) ntsc:768 (h) ×494 (v)
signal system: pal/ntsc
horizontal resolution: color 600tvl, b/w 650tvl
min. Illumination: 0.03lux f1.2
s/n ratio: more than 50db
shutter speed: 1/50(1/60)-1/10,000(s)
gain control: auto
white balance: auto
b/l compensation: auto
sync. System: internal
varifocal lens: 4mm cs lens(6mm,8mm optional)
video output: 1.0vp-p75ω
ir lamps wavelength: 850nm
power requirement: dc 12v 150ma (ir on 330ma)
power consumption: dayapprox.1.8w night/approx.4.0w
dimensions(wxdxh): 128mm x 100mm
weight: approx.400g
