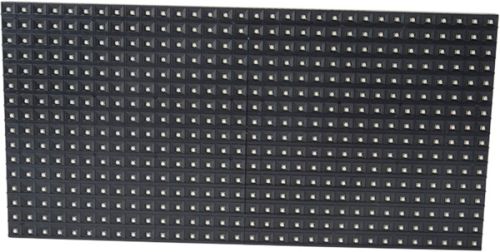

Indoor LED Display Board

We are offering indoor led display board, led scrolling module panel.
Pixel pitch: 10mm
pixel configuration: 1r1g1b
led encapsulation: smd3528
wavelength: red 620～625nm
green 525～530nm
bule 465～470nm
brightness of red: 250～350 mcd
brightness of green: 600～700 mcd
brightness of bule: 100～150 mcd
physical density: 10000dot㎡
panel size: 320mm×160mm
display resolution: w32*h16
viewing angle: h140°v45°
option distance: ≥10m
module structure:
driving method: constant current 18scan
driving device: led special driving device
brightness: ≥800cd㎡
brightness adjustment: 256 scale or automatical adjustment
refresh frrequency: ≥300hz
frame frequency: ≥60hz
input power: ac110v220v
average power consumption: 250w㎡
maximum power consumption: 500w㎡
mean free error time: 1000hours
life span: 100, 000hours
control system : linsn led control system
control method : synchronization control
box size: 1280mm×960mm×120mm
bracket : 320mm×320mm×18mm
standard box: 1280mm×960mm×(100～120)mm
standard box weight: 45kg
storage temperature: -40℃~ +85℃
operating temperature: -10℃~ +50℃
working humidity: ≤10~90%
