Indoor Micro Fiber Optic Cable

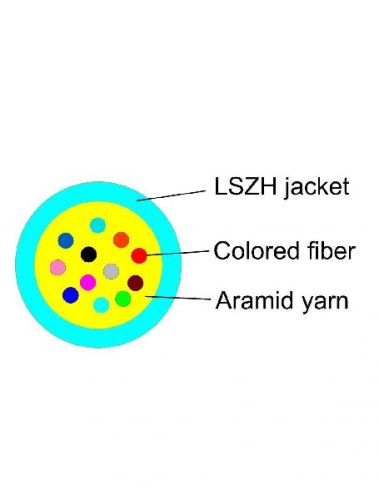

The size of micro indoor cable is quite small , 3.0mm outer diameter for 2-24 fibers , it is the best material for mpo/mtp assemblies of data center . The micro indoor fiber optic cable is with high strength yarn member ensures high tensile strength ,small outer diameter, lightweight, flame-retardant, soft and easy to strip .suitable for installation, operation and convenient for maintenance. Technicalparameters: fiber count 2-24 outer diameter(mm) 3.0±0.2 nominal weight(kg/km) 8 max. Tensile strength(n) short term 150 long term 80 min. Bending radius(mm) dynamic 30d static 15d max. Crush resistance (n/100mm²) short term 500 long term 150 temperature range -20°c~+70°c   optical preformances:  optical transmission performance single mode 1310/1550nm multimode 850/1300nm 9/125μm (os2) 62.5/125μm (om1) 50/125 μm (om2) 50/125 μm (om3) 50/125 μm (om4) max.attenuation(db/km) 0.36/0.25 3.0/0.8 2.7/0.8 2.7/0.8 2.7/0.8 typ.attenuation(db/km) 0.34/0.21 2.7/0.6 2.5/0.7 2.3/0.6 2.3/0.6 bandwidth (mhz/km) n/a 200/600 500/500 1500/500 3500/500 850nm laser bandwidth(mhz/km) n/a n/a n/a 2000 4700 numerical aperture 0.13±0.01 0.275±0.015 0.200±0.015 0.200±0.015 0.200±0.015
