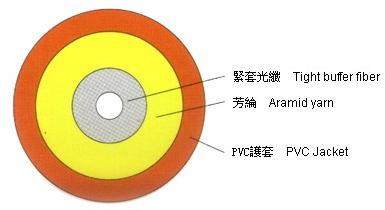

Indoor Optical Fiber Cable

We offer indoor optical fiber cable.
indoor optical fiber cable
features
pvc, lszh jacket optional
cable diameter 0.9mm or 1.6mm or 2.0mm or 3.0mm optional
simplex, duplex optional
os1, om1, om2, om3 fiber optional
color standard compliant with tia/eia-598-a/-b
specification
specification
cable diameter (mm) 1.6 2.0 2.8
tight buffer diameter (um) 　 600±50 900±50 900±50
cable weight (kg/km) 3.3 4.2 6.4
max load (n) long term 60 60 80
　 short term 120 120 150
bending radius (cm) dynamic 20d (d: cable diameter)
　 static 10d (d: cable diameter)
operating temperature 　 -40℃~ +85℃
storage temperature -40℃~ +85℃
fiber type
fiber mode smf 8.3/125 om2 50/125 om1 62.5/125
cladding diameter (um) 125±1.0 125±1.0 125±1.0
wavelength (nm) 1310/1550 850/1300 850/1300
max attenuation (db/km) 0.5/0.4 3.5/1.5 3.5/1.5
typical attenuation (db/km) 0.36/0.22 3.0/1.0 3.0/1.0
application
telecommunication
data network
lan, fttx
catv.
