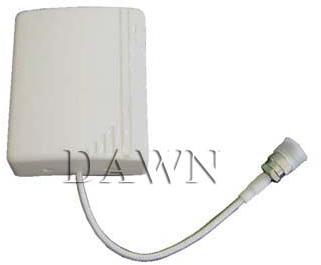

Indoor Wall-Mounted Panel Antenna(DB2400-8-65)

Model: DB2400-8-65 Specification of Panel Antenna: Frequency Range:2400-2500MHz VSWR:≤1.5 Input Impedance:50Ω Gain:8 dBi Horizontal Beam width:65° Vertical Beam width:50° Electrical Down tilt:0° Front to Back Ratio:≥20 dB Max. Power:50W Polarization:Vertical Connector Type:N-Female Lightning Protection:DC Ground Radiating Element Material: Brass Radome Material: ABS Weight:0.13kg Dimension:103×82×30mm Features of Panel Antenna: High Gain, Low VSWR; Light weight, Small size; Adopt good quality ABS, long operating time; With customer mounting plate, Easy to mount.
