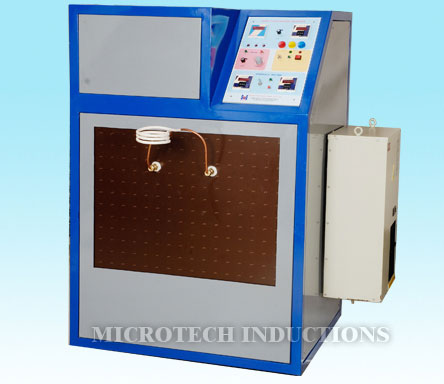

Induction melting

Listing ID #3910993

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier

Preferred Buyer From : All over the world

Induction melting is the process to melt the ferrous and non-ferrous metals for forming applications, tools & component casting and percious metal melting etc. Microtech Induction Melting....

View More Details

Send Enquiry

Product Details

Induction melting is the process to melt the ferrous and non-ferrous metals for forming applications, tools & component casting and percious metal melting etc.

Microtech Induction Melting Furnace provides very efficient & time saving melting of metals for various applications.

Gold Melting.
Silver Melting.
Levitation Melting Systems in microgravity of space.
Vacuum Induction Melting.
Platinum Melting.
Very high Temperature Induction Melting.
Crystal Growing.
Alloy Melting.
Aluminium Foundry.
Steel Foundry.
High Temperature ceramic melting furnace.

Uniform metal melting due to induction churning
Less oxidation loss
Easier molten charge handling
No pre-heating required
Cost efficient & energy saving
Highest system efficiency
Highly adaptable for automation
Eco-friendly due to noiseless and flameless operation
No statutory approvals required
Lesser risk involved compared to conventional methods
Application Specific
Auto or manual mode operation
Improved power factor
Tropicalised design
Compact size

POWER RANGE	1-5KW	05-15KW.	15-50KW	50 -200KW
FREQUENCY RANGE	5-600kHz	01-400 kHz	01-30kHz	01 – 30kHz
ADAPTATION TO CHANGE LOAD CHARECTERISTICS	YES	YES	YES	YES
POWER CONTROL	MANUAL	AUTO	AUTO	AUTO
LOAD SENSED SELF TUNING	YES	YES	YES	YES
SIZE (mm)	W-225 B-500 H-430	W-530 B-640 H-1110	W-620 B-725 H-1370	W-1000 B-1090 H-1675
INPUT POWER RANGE	SINGLE PHASE 230V/50Hz.	THREE PHASE 230V/50Hz	THREE PHASE 440V/50Hz	THREE PHASE 440V/50Hz

Company Details

MICROTECH began it's journey with design and manufacturing of process control equipments and gradually diversified into manufacturing of various electronic equipments.
MICROTECH became a leader in customised design of INDUCTION HEATING SYSTEMS. We feel proud at MICROTECH which cares it's customer, employees & environment. MICROTECH's mission is to provide state of the art Induction Heating olutions coupled with timely after-sales support.
MICROTECH INDUCTIONS PVT. LTD. - A leader in design and manufacturing of versatile & sophisticated Solid State Inverter Technology based Induction machines for various field of applications like Heating, Melting, Annealing, Hardening, Brazing, Cap Sealing, Shrink Fitting, etc.
More than 1000 Induction Machines successfully in operation around the globe.
First to introduce Utensil Annealing Machine in Steel Industry.
First to introduce double frequency inverter in Melting with efficiency as high as 95%..
First to introduce hybrid control strategy for induction power control (patent pending).
First to introduce multi-stacking of voltage source inverter for capacity enhancement (Patent pending).
Having state of the art Setup, Testing and Manufacturing facility in Mumbai to achieve quality as per ISO and CE standards.
Young & dynamic management & Business Administration team to accept any challenge.
