Induction Melting Furnace

We are offering induction melting furnace etc. Copper, sliver, steel. Aluminum, steel, induction melting furnace
specifications:
1). Equipment power: from 15kw to 160kw
2). All-solid-state igbt frequency regulation, soft switch dual-resonance control and frequency automatic tracking technology
3). Energy efficient, higher power factor and power efficiency
4). Broadband 1-20khz frequency automatic tracking adaptability
5). Working ability of consecutive 24 hours 100% full load
6). The control selection function for constant output voltage or constant current/constant power
7). Frequency, power, voltage and current full display, adjustable heating, holding time(0.1s-99.9s)
8). Used for; metal smelting, through heating, bend, and forging.
induction melting furnace

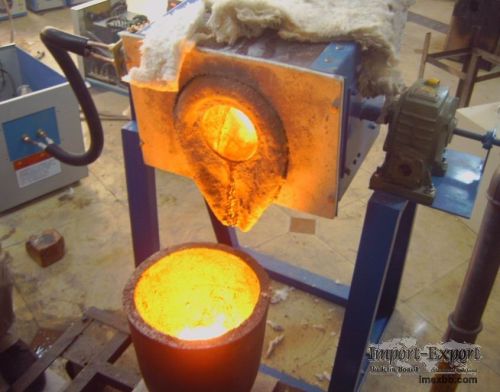

smjrz-45kw middle frequency for melting&forging uses. The picture is affixed for reference.
data:
1. Input voltage: 3 x 380v, 50/60hz, it can work well at the range of 325v-440v.
2. Output power: max 45kw, 100% duty
3. Output frequency: 1khz-20khz
4. Cooling: water cooling
5. Size and weight:
control box: 600x350x530(mm), 40kg
capacitor box: 480x280x450(mm), 38kg
melting furnace can me designed as your required. The capacity can be 1 kg-150kg. You can also choose the crucible of different size for different metals melting.
we are igbt induction heating machines manufacturer and dealer from china. Our heating machine are used for melting, forging, pre-heating, heat fitting, tempering, hardening, brazing, annealing, pre&post welding, stress relieving and other uses.
warrenty: 12months free, and suppy all long life services
