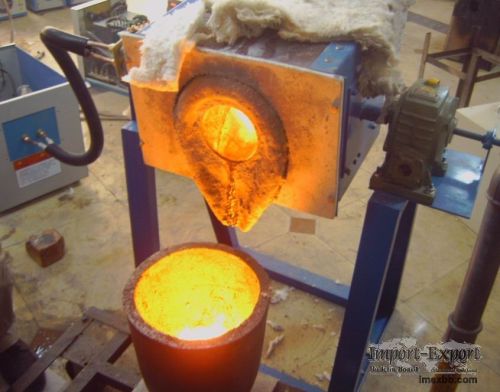

Induction Melting Furnace Smjrz-70

We are offering induction melting furnace smjrz-70.
1kg ~200kg induction melting furnace
main specifications:
model smjrz-15 mf-25 mf-35 mf-45 mf-70 mf-90 mf-110 mf-160
max input power 15kw 25kw 35kw 45kw 70kw 90kw 110kw 160kw
max input current 23a 36a 51a 68a 105a 135a 170a 240a
output current 3-22a 5-45a 10-70a 15-95a 20-130a 25-170a 30-200a 30-320a
output voltage 70-550v.
melting capacity: 1kg ~ 200kg. Depends on customer requirement.
input
voltage 3phase 380v ± 20% 50 or 60hz or according customer's requirement.
frequency 1khz -20khz according customer's workpiece require.
duty cycle 100% 24hours continuous working
generator net weight 26 28 35 47 75 82 95 125 240
generator size
lxwx h 470x270x450mm 520x270x450mm 650x350x550mm 750x400x870mm 820x500x870mm 560x560x1750mm
timer heating time: 0.1-99.9seconds retaining time: 0.1-99.9seconds
front panel lcd, display frequency, power, time etc.
whole systems water flow ≥ 0.2mpa ≥ 6l/min ≥ 0.3mpa ≥ 10l/min ≥ 0.3mpa ≥ 20l/min ≥ 0.3mpa ≥ 30l/min
water requirement.
water flow ≥ 0.2mpa ≥ 3l/min ≥ 0.2mpa ≥ 4l/min ≥ 0.2mpa ≥ 6l/min ≥ 0.2mpa ≥ 10l/min
water way 1 water inlet, 1 water outlet 1 water inlet, 3 water outlet
max water temperature ≤ 45
features:
1. All-solid-state igbt frequency conversion and power adjustment, soft-switching responance dual-control and frequency automatic tracking technology is the reliability of guarantee. Module and soft switching inverting technologies are used in the production of the generator, higher reliability can be achieved;
2. Small size and portable, compared with scr controlled machine, only 1/10 working space is needed, greatly reduce occupation space;
3. High efficiency and energy saving: a high power factor and power efficiency within the scope of full power.
4. With wide frequency range from 1-20khz automatic trackin ability, no need adjustment at scene.
5.100% duty cycle, 24hours continuous working ability at maximum power.
6. Constant output voltage or power control modes are alternative;
7. Full display of output power, output frequency, output voltage and current.
8. The timer function: heating time and retaining time: 0.1~99.9second.
