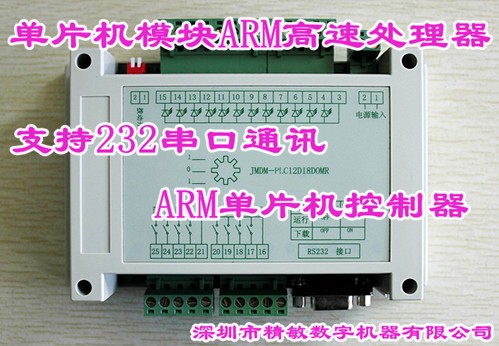

Industrial Arm Control Panel, Brand Name : JMDM

We are offering industrial arm control panel.
1) using arm 32-bit architecture ™ - m3 cpu, 128 k flash program memory; 20 k sram.
2) main power supply adopts 18v (or 24v dc), peripheral drive power use 2412v dc;
3) 12 channels photoelectric isolation digital quantity input, npn input form, the input current of 10 ma;
4) 8 channels relay output (can connect 220v voltage, maximum current is 5a), using photoelectric isolation and enable internal watchdog and rigorous high-frequency filtering characteristics, and make the system work stable and reliable, no crash phenomenon;
5) 1 channel to standard rs232 serial communication interface (15kv static shock resistance), can directly communicate with peripherals like computer or text display
6) can download the program directly through the rs232 interface, without cd-r machine, convenient program modification and upgrade;
7) with a lamp that led lights display working status, there is a dial the code switch can be set according to the program state or parameters;
8) shell adopts screw or guide installation, integration compact design.
shell size: 145mm x 90 mm x 40 mm;
internal control panel size: length x width x height: 122 mm * 86 mm * 28 mm;
9) can use keil c or assembly programming, user programming is difficult can send the technological process to us, we can help programming.
