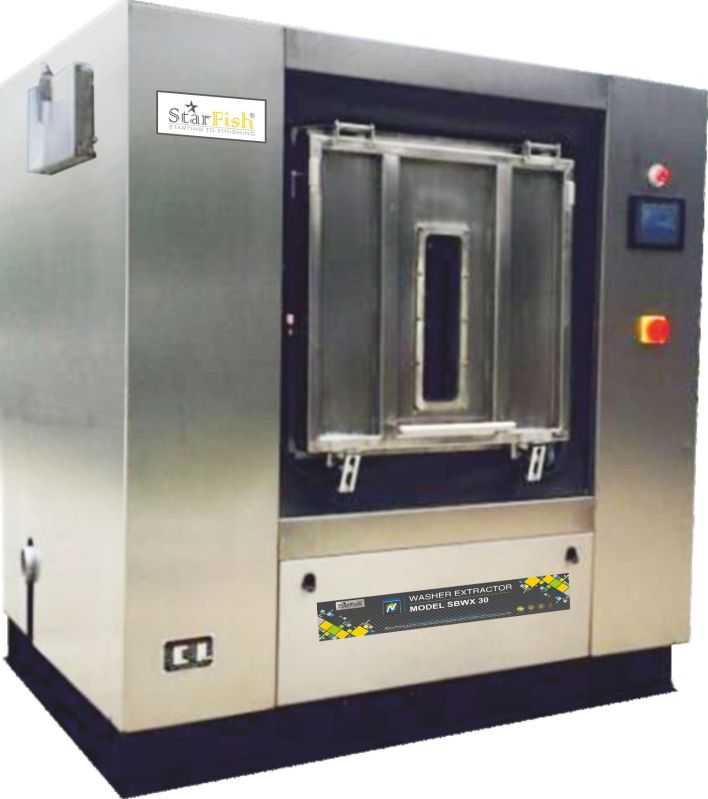

Industrial Barrier Washer Extractor - Soft Mount

₹ 9.64 Lakh / piece

Liquor Ratio1 : 10
Base FrameMild Steel Channel
Mounting TypeSoft
Overall FinishMatt Finished Stainless
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Product Details

Liquor Ratio1 : 10
PerforationTurret Punch Press
Forward/ReverseAdjustable 0-60 Seconds
Volt415 / 3Ø
Water LevelLow/Medium/High
Motor Power in kw4
Shock absorberHeavy Duty
High extract Rpm850
Drum Volume in Liter300
Shaft GlandIntegral Housing With Shaft, Bearing, Oil Seal and Drive System
Drum Size in mmØ800 x 600
ModelSBWX 30
BendingCNC
VFDLS/Equivalent
Base FrameMild Steel Channel
Side CoverStainless Steel 304 Grade
Overall Dimension in mm1380 x 1380x 1700
Washing speed Rpm32
Weight in Kgs1500
Extraction TimeAdjustable by PCB
Outer DrumStainless Steel 304 Grade
Manual OperationAvailable
Inner DrumStainless Steel 304 Grade
Washing TimeAdjustable by PCB
No of Programme30
Emergency SwitchYes
Control panelFeather Touch
LogoStarfish Engraving with LED Lights
SpringsHelical Compression
Motor BrandImported
Water DrainAutomatic Through Valve
Mounting TypeSoft
Medium extract Rpm400
Outer CoverStainless Steel 304 Grade
Soap DispensingAutomatic Through Solenoid Valve
Water Inlet in mm37
Soap Cup3
Water InletAutomatic Through Solenoid Valve
Belt AdjustmentScrew Rod
WeldingLaser MIG/TIG
Heater in kw(Optional)12
Door Open Cut OffLimit Switch
Steam Consumption Kg/Hr45
DoorsStainless Steel 304 Grade with Pneumatic Lock
Nuts, Bolts And ConnectorsStainless Steel
CuttingCNC
FoundationRequired
Drain Outlet in mm50
Overall FinishMatt Finished Stainless
Dry Weight in Kg30

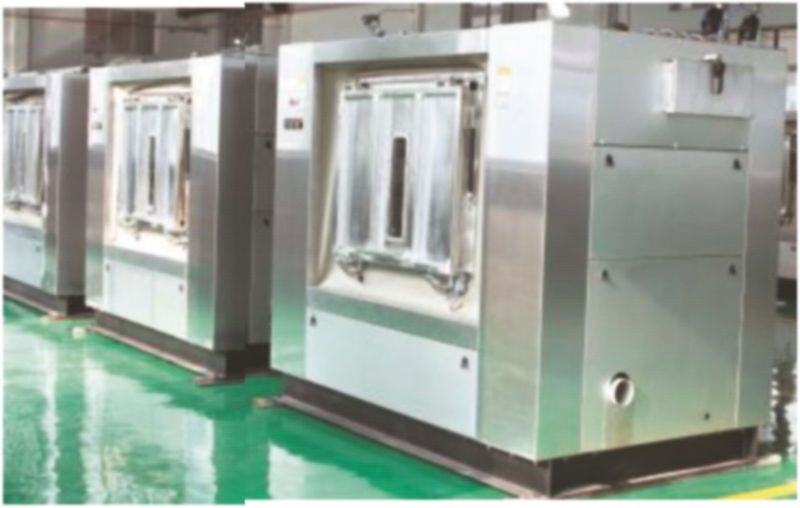

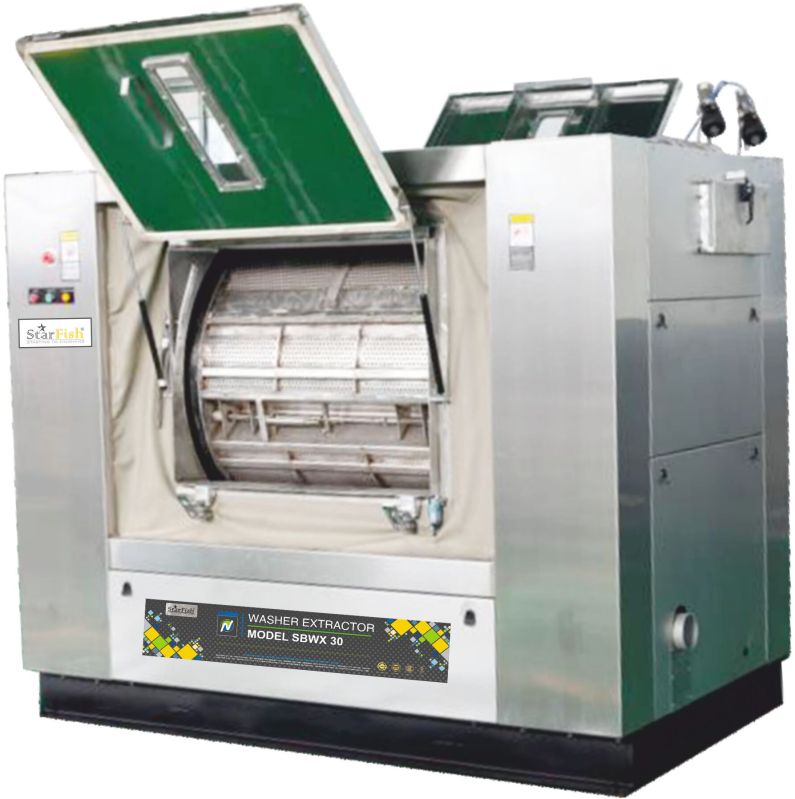

The Starfish Barrier Washer Extractor fulfils the requirements for bacteria-free and anti-static laundry.

The laundry room can be easily divided into separate and independent operating zones using the. barrier and wall partition. Dirty clothes are loaded through the loading door into the washing machine and then unloaded from the other side once the washing is finished.

This operational setup effectively prevents the spread of germs, bacteria, radiation, and dust Consequently, clean laundry remains uncontaminated and free from reinfection after washing.

Barrier Washer Extractor feature advanced design, robust construction, cost-effective operation, easy. maintenance, and high performance.

These machines are extensively used in hospitals, food and pharmaceutical factories, nuclear power plants, and other environments where strict cleanliness and hygiene standards are observed.

The Touch screen with a user-friendly interface enables intelligent operation, automating processes such as water pouring, pre-washing, rinsing, bleaching and cleaning.

Imported precise and durable bearings and a framework oil seal ensure the reliability of drum-precisiom and airtightness, eliminating any leakage and significantly reducing issues.

Note: Above mentioned price is based on the adult care service plan (Note: Tax and Transportation Charges are Extra). Prices may vary according to the size and models. [Please contact us to get the latest price & know more about our service plan]
