Industrial Bearings

We are offering industrial bearings.

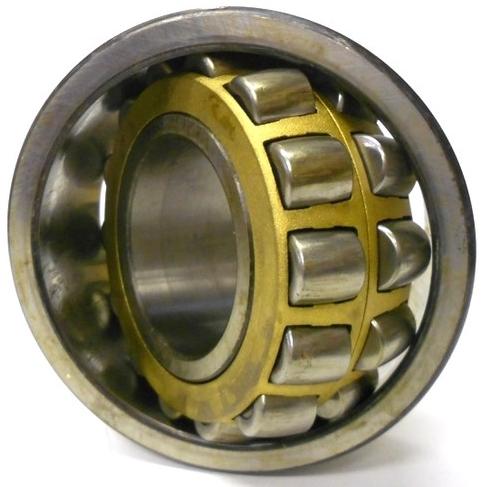

Skf bearing : 23244 ccw33
type: spherical roller bearings, cylindrical bore
bore diameter: 220 mm
outer diameter: 400 mm
depth: 144 mm
dynamic load rating: 2485 kn
static load rating: 3450 kn
fatigue load limit: 285 kn
reference speed: 1100 rmin
limiting speed: 1500 rmin
bearing weight: 81.5 kgs
country of origin: sweden
bearing cage: symmetrical rollers, two window-type
steel cage
material: ultra-clean steel with longer service life
heat treatment: improved wear-resistance and hardness
internal geometry: a fine-tuned micro-geometry of the rolling
contacts provides better stress distribution
running accuracy: standard to p5 tolerance class
contact: sales(at)hzskf.cn www.industrybearing.com
skf 23244 ccw33 bearings cc design consist of symmetrical rollers, two window-type steel cages centred on the flangeless inner ring via a floating guide ring between the two rows of rollers.
standard skf spherical roller bearings have the common features: special roller profile, self-guiding rollers, floating guide ring between the two rows of rollers, bearing components dimensionally stabilized for high temperatures and metallic cages.
