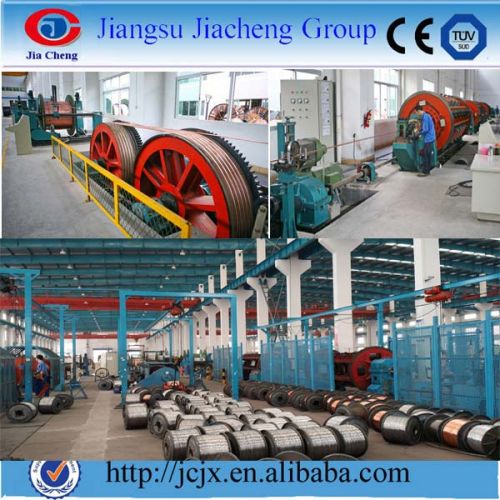

Industrial Cable Rigid Frame Stranding Machine

MOQ1 Set(s)
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

No. Item parameters 500 1 diameter of stranded single wiremm2 copper φ1.2-4.5copper:φ1.8-5aluminum alloy φ1.2-4.5 2 largest stranding cross-section(pressing by drawing)mm :copper....

View More Details

Send Enquiry

Product Details

No.
Item
parameters
500
1
diameter of stranded single wiremm2
copper φ1.2-4.5copper:φ1.8-5aluminum alloy φ1.2-4.5
2
largest stranding cross-section(pressing by drawing)mm
:copper 500:aluminum630
3
speed of strander cage(6-step gears)(rpm)
63147
4
stranding pitch(driving by ground shaft) (mm)
60.931077.93
5
diameter of towinf wheel (mm)
φ2000double wheel,double driving
6
towing linear speed(mmin)
8.9768.2
7
specification of in-frame take-off reeler (mm)
pnd500
8
specification of center take-off reeler (mm)
pn8001600
9
specification of take-up reeler(mm)
pn16002500
10
power of main motor(kw)
z4 90 1500
11
power of entire stander(kw)
approx 110
12
center height (mm)
1000
13
total weight (t)
50
14
overall dimensions (m)(l×w×h)
40×5×2.2

Additional Information

Payment Terms L/C, D/A, D/P, T/T, Western Union,
Port of DispatchSHANGHAI
Packaging DetailsJCJX-500 Industrial cable Rigid Frame Stranding Machine (Cable Making )
Delivery Time90DAYS FOR Rigid Frame Stranding Machine (Cable Production Line )
