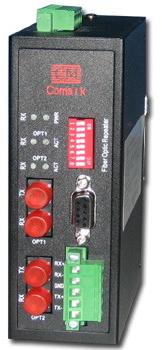

Industrial Communication Fiber Optic Converter for Fieldbus networks

Optic converter p/n:ci-sf120-sm-fc
description:
the ci-sf120 series is designed for use in optical rs232/485/422 general serial networks. Feature with data rate up to 10m,35mm din rail mounting, redundancy power input(9v~30vdc),relay output alarm.
ci-sf120 contains two fiber optic transceivers one electrical interface. The modems provide fiber optic connection in point to point, star, daisy chain topologies networks.
specification
electrical interface
rs232/422/485 interface:
rs232 speed: 0-115200bps;
rs232 support for rxd, txd, gnd 3-line approach to work;
rs422 support for rx-, rx +, tx-, tx + full-duplex mode;
rs485 support for a, b half-duplex mode;
rs422/485 rate: 0-2m (optional 500k, 1m, 5m, 10m);
protection: rs422/485 with 600w sursge protection also has overload protection function.
wire cable connection
rs232:db9-f. Rs485/422:db9-f or pluggable screw terminal.
wire end termination: none.
optical interface
wave length: 850nm,1310 nm,1550nm
fiber type: multi mode 50/125 um,62.5/125 um,100/140um;single mode 8.3/125 um,9/125um,10/125um
transmission distance: mm 2km,sm 20km
fiber interface type: st/sc/fc optional, st standard.
relay
contact rating:dc30v@1a max.
fiber link fault and no voltage input alarm
5-pin pluggable screw terminal
power
input voltage: 24vdc(9vdc~30vdc)
5-pin pluggable screw terminal
support dual power backup
consumption:24vdc@60ma(
