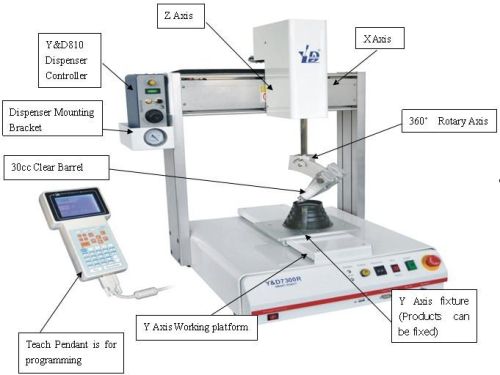

Industrial Dispensing Robotic Arm, Brand Name : Y&D

We are offering y&d 4 axes robots for automatic dispensing of adhesives, liquid gaskets, resins and uv materials.
four axis and four-linkage running r-axis: 360°rotary
compared with similar products, the dispensing robot full realization of the four-axis and four linkage run. This machine solved the trouble with four space trajectory dispensing in the workpiece as like the outer wall, vertical, or within the gap dispensing line or circles.dot
applicable fluid:
silica gel, emi conductive adhesive, uv glue, ab glue, fast dry glue, epoxy adhesive, sealant,hot glue, grease, silver glue, red glue, solder paste, cooling paste, prevent solder paste, transparent lacquer, screw fixation agent, etc.
main use:
the product in the process of bonding, infusion, coating, sealing, filling, drop, linear/arc/round glue,etc. Dispense in point, line, surface, arc, circle and irregular curve and triaxial linkage function is available etc.
specifications
item y&d7300r
x/y/z working area (mm) 　　300/300/100
load worktable 10.0kg/2.0kg
speed ptp x&y/z (mm/sec) 0.1~800/320
repeatability +/- 0.01mm / axis
resolution 0.01mm/axis
data memory 100 programs, 4000 points/program
data storage cf card/pc storage & usb
display teach pendant lcd
operation system ptp (point to point) & cp (continuous path)
interpolation linear/circular 4 axis
teaching method teach pendant
i/o signals 8 inputs / 8 outputs
external interface rs232
power supply c 90~260v 320w
operating temperature 0~40°c
motor system micro stepping motor
dimensions 485*505*610
weight 34kg.
