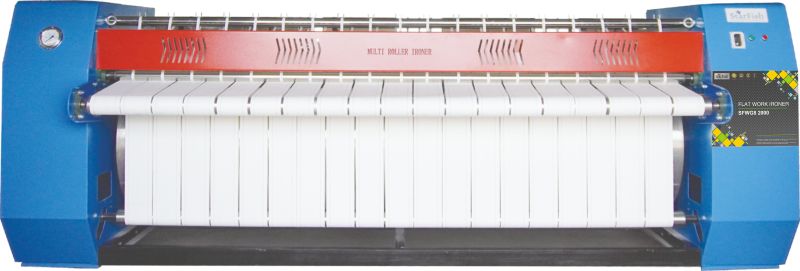

Industrial Flat Work Ironer Cum Dryer Single Roller Gas 800MM SFWG8 2000

₹ 5.90 Lakh / piece

Brand NameStarfish
WeldingLaser MIG/TIG
CuttingCNC
Shaft GlandPlumbe Block Bearing
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Product Details

Brand NameStarfish
Volt415/ 3Ø
Consumption Per Hour2.5- 3.5 Kg
Side CoverMild Steel
Drum Thickness4 mm
Main DrumStainless Steel 304 Grade
Shaft GlandPlumbe Block Bearing
Front Panel ( Optional )Feather Touch
Motor BrandImported
Ironing BeltCotton
Overal FinishPowder Coated
Control PanelManually Operated by Switches
No of RollersSingle

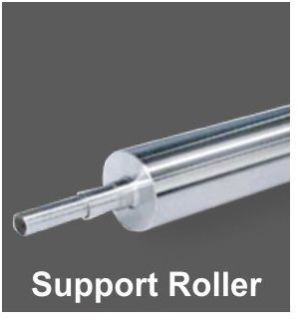

Supporting RollersMild Steel Covered with SS Sleeve
LogoStarfish Engraving with LED Lidhts
Gas Pressure in Mpa0.02 - 0.03
Roller Length in mm2000
Blower MotorOwn Brand
Heating TypeGas
Blower Motor in kw0.75
Temperature140°
Emergency SwitchYes
Base FrameMild Steel Channel
Finger GuardLimit Switch
Control BoxMild Steel with Lock
Drying Spees RpmAdjustable Through VFD
Roller Dia in mm800
Side PanelMild steel
ModelSFWG8 2000
CuttingCNC
FoundationNot Required
Motor Power in kw1
Ironing Belt AdjustmentScrew Rod
Back CoverMild Steel
Weight in Kgs900
BendingCNC
Speed of Ironing m/min7.5
Over All Dimension in mm3200 x 1400 x 1250
WeldingLaser MIG/TIG

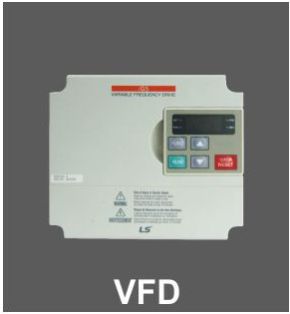

Ironer has Variable Frequency Drive for speed adjustment. Customer can change speed according to fabric thickness to enhance ironing efficiency. Ironing roller of Diameter 800 mm is made with Stainless steel. Roller uses Galvanization technology to extend the life.

Heating by using stainless steel cylinder shows good effect. Maximum touchable area 300 Degree roller circle effectively increase work area and improve ironing speed, heat energy and reduce the Running cost.

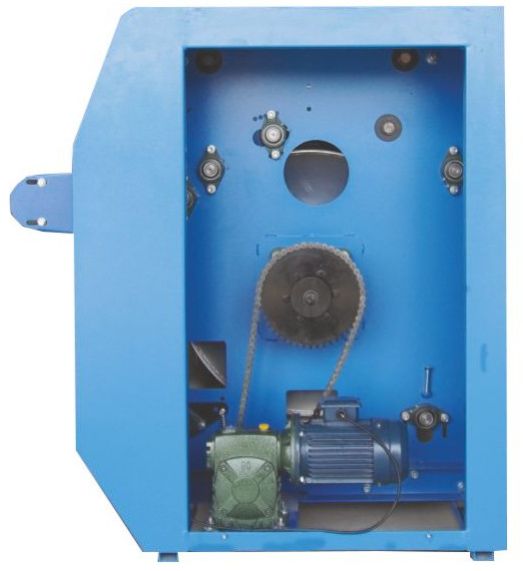

Drive motor linked with gear box will ensure stable running of roller. The main machine made by cutting laser machines and welded with high quality welding will provide the elegant look, smooth running, Accurate transmission, quality running and long life span. Ironer belt of best quality which withstand high temperature. Compact structure saves a lot of space by small covering area.

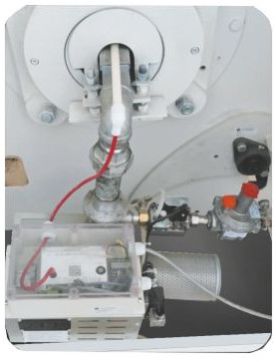

Several types of heating type by outside connecting steam, gas and electric are available. Also available with Return feed and Rear return is optional.

Note: Above mentioned price is based on the adult care service plan (Note: Tax and Transportation Charges are Extra). Prices may vary according to the size and models. [Please contact us to get the latest price & know more about our service plan]
