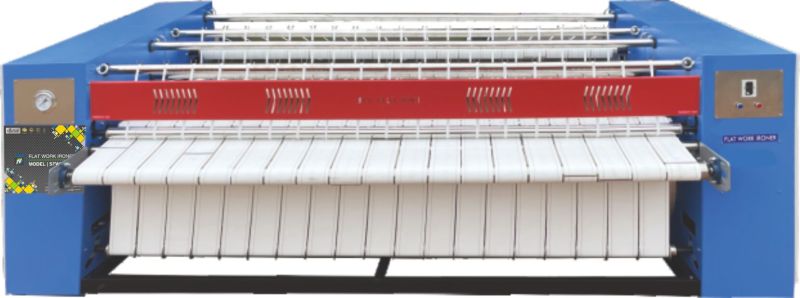

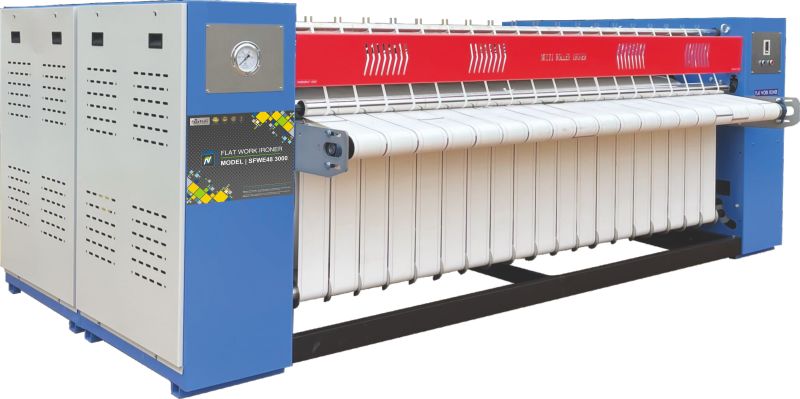

Industrial Flat Work Ironer Cum Dryer Triple Roller Gas 800 Mm SFWG38 3000

₹ 19.52 Lakh / Piece

Nuts, Bolts And ConnectorsMild Steel
Ironing Belt Width150 mm
Control BoxMild Steel with Lock
WeldingLaser MIG/TIG
Supply TypeManufacturer, Exporter, Supplier, Retailer, Trader
Preferred Buyer Location All over the world

Company Information

Member Since 8 Years
Nature of Business Retailer
GST No. 33AAFFN9290A1ZF

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

BendingCNC
Side PanelMild Steel
Volt415
Consumption Per Hour100 Unit
Speed of Ironing m/min30
Control PanelManually Operated by Switches
Emergency switchYes

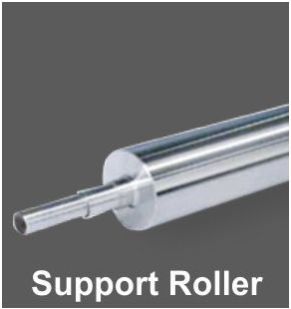

Supporting RollersMild Steel Covered with SS Sleeve
Drum Thickness4mm
Roller Length in mm3000
Back CoverMild Steel
Finger GuardLimit Switch
ModelSFWE48 3000
Overall FinishPowder Coated
Blower MotorOwn Brand
Ironing Belt AdjustmentScrew Rod
FoundationNot Required
Ironing BeltCotton
WeldingLaser MIG/TIG
Shaft GlandPlumber Block Bearing
Ironing Belt Width150 mm
Heater in Kw144
Weight in Kgs5000
Front Panel (optional)Feather Touch
No of RollersFour

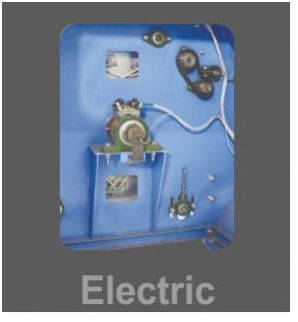

Heating TypeElectric
Control BoxMild Steel with Lock
Side CoverMild Steel
Motor BrandImported
Mounting TypeSoft
Roller Dia in mm800 x 4
Motor Power in Kw3
LogoStarfish Engraving with LED Lights
Drying speed RPMAdjustable Through VFD
Nuts, Bolts And ConnectorsMild Steel
CuttingCNC
Main DrumStainless Steel 304 Grade
Base FrameMild Steel Channel
Dimension4200 x 5600 x 1250
Temperature140°

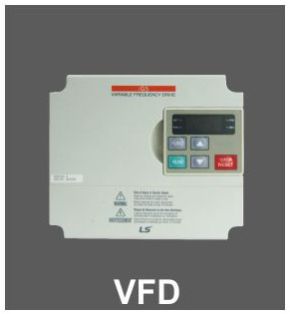

Ironer has Variable Frequency Drive for speed adjustment. Customer can change speed according to fabric thickness to enhance ironing efficiency. Ironing roller of Diameter 800 mm is made with Stainless steel. Roller uses Galvanization technology to extend the life.

Heating by using stainless steel cylinder shows good effect. Maximum touchable area 300 Degree roller circle effectively increase work area and improve ironing speed, heat energy and reduce the Running cost.

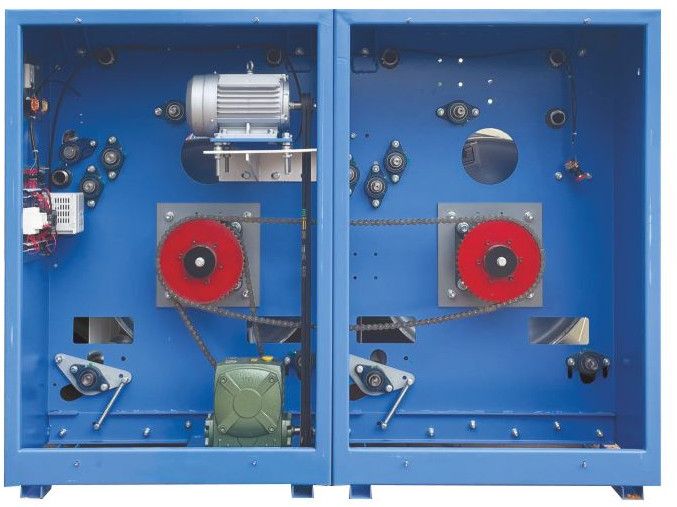

Drive motor linked with gear box will ensure stable running of roller. The main machine made by cutting laser machines and welded with high quality welding will provide the elegant look, smooth running, Accurate transmission, quality running and long life span. Ironer belt of best quality which withstand high temperature. Compact structure saves a lot of space by small covering area.

Several types of heating type by outside connecting steam, gas and electric are available. Also available with Return feed and Rear return is optional.

Note: Above mentioned price is based on the adult care service plan Tax and Transportation Charges are Extra). Prices may vary according to the size and models. [Please contact us to get the latest price & know more about our service plan]
