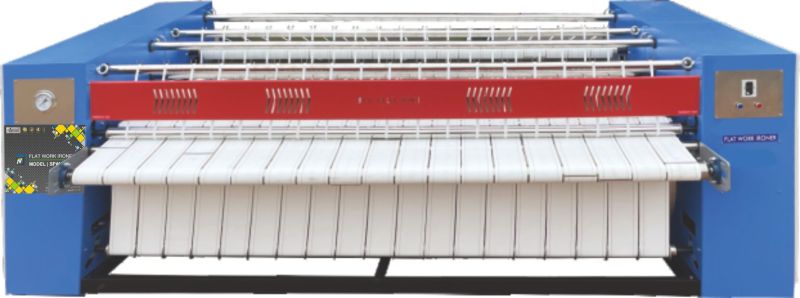

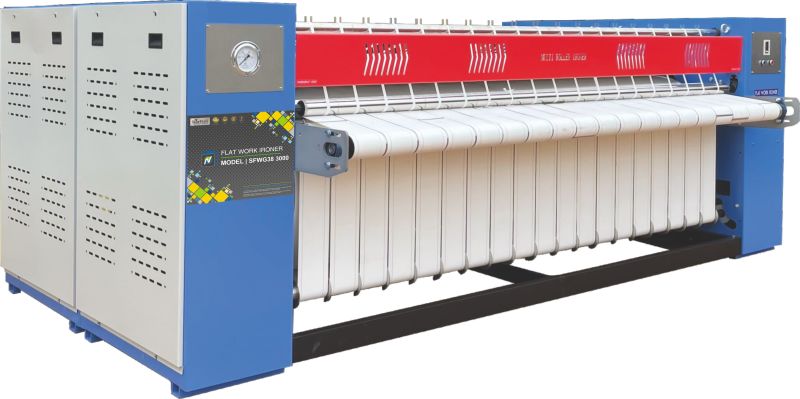

Industrial Flat Work Ironer Cum Dryer Triple Roller Gas 800 Mm SFWG38 3000

₹ 19.52 Lakh / piece

Drum Thickness4mm
Heating TypeGas
Consumption Per Hour12-15 Kg
Ironing Belt AdjustmentScrew Rod
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Product Details

Consumption Per Hour12-15 Kg
Ironing Belt AdjustmentScrew Rod
Finger GuardLimit Switch
Ironing Belt Width150 Mm
Ironing BeltCotton
Drum Thickness4mm
Heating TypeGas
Overall FinishPowder Coated
ModelSFWG38 3000
Temperature140°
Blower MotorOwn Brand
Control BoxMild Steel with Lock
Volt415 / 3Ø
Control PanelManually Operated by Switches
BendingCNC
Supporting RollersMild Steel Covered with SS Sleeve
WeldingLaser MIG/TIG
Blower Motor in Kw2
Overall Dimension in mm4200 x 4200 x 1250
Motor Power in Kw2.5
Gas Pressure MPA0.02 - 0.03
Mounting TypeSoft
No of RollersThree
Brand NameStarfish
Front Panel (optional)Feather Touch
Side CoverMild Steel
Roller Length in mm3000
Main DrumStainless Steel 304 Grade
Emergency switchYes
Roller Dia in mm800 x 3
Base FrameMild Steel Channel
Side PanelMild Steel
CuttingCNC
Shaft GlandPlumber Block Bearing
FoundationNot Required
Drying speed RPMAdjustable Through VFD
LogoStarfish Engraving with LED Lights
Weight in Kgs3900
Back CoverMild Steel
Nuts, Bolts And ConnectorsMild Steel
Motor BrandImported

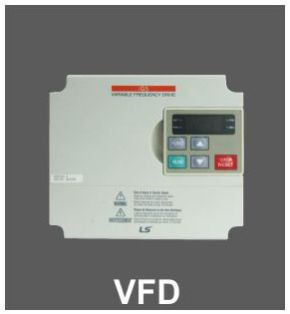

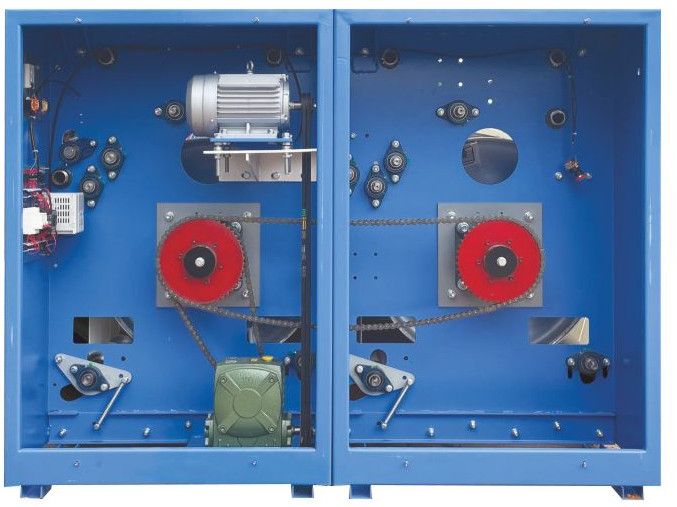

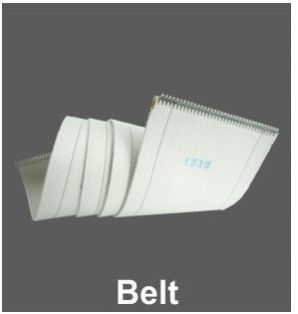

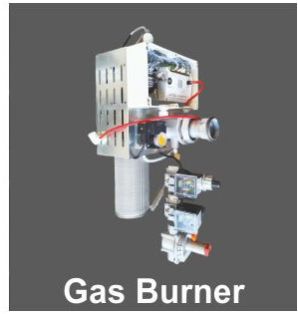

Ironer has Variable Frequency Drive for speed adjustment. Customer can change speed according to fabric thickness to enhance ironing efficiency. Ironing roller of Diameter 800 mm is made with Stainless steel. Roller uses Galvanization technology to extend the life.Heating by using stainless steel cylinder shows good effect. Maximum touchable area 300 Degree roller circle effectively increase work area and improve ironing speed, heat energy and reduce the Running cost.Drive motor linked with gear box will ensure stable running of roller. The main machine made by cutting laser machines and welded with high quality welding will provide the elegant look, smooth running, Accurate transmission, quality running and long life span. Ironer belt of best quality which withstand high temperature. Compact structure saves a lot of space by small covering area.Several types of heating type by outside connecting steam, gas and electric are available. Also available with Return feed and Rear return is optional.

Note: Above mentioned price is based on the adult care service plan (Note: Tax and Transportation Charges are Extra). Prices may vary according to the size and models. [Please contact us to get the latest price & know more about our service plan]
