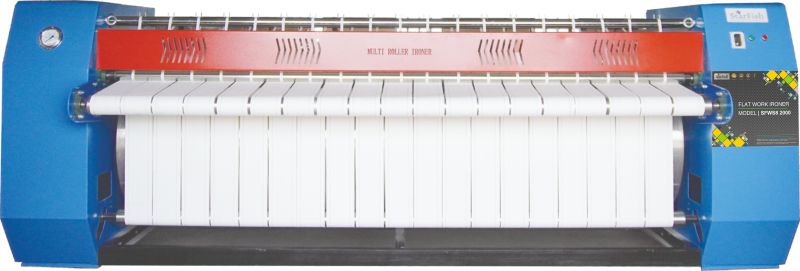

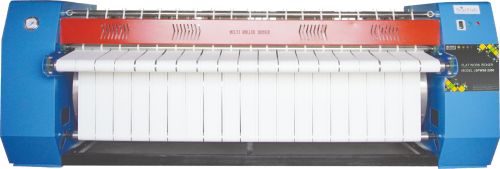

Industrial Flat Work Ironer Single Roller Gas 800 Mm 2000 Mm SFWS8 2000

₹ 4.64 Lakh / piece

Finger GuardLimit Switch
Ironing Belt Width150 Mm
Ironing BeltCotton
Consumption Per Hour80 Kg
Supply TypeManufacturer, Exporter, Supplier, Retailer, Trader
Preferred Buyer Location All over the world

Company Information

Member Since 8 Years
Nature of Business Retailer
GST No. 33AAFFN9290A1ZF

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Consumption Per Hour80 Kg
Heating TypeSteam
Ironing Belt AdjustmentScrew Rod
Drum Thickness4 Mm
Finger GuardLimit Switch
Ironing Belt Width150 Mm
Ironing BeltCotton
No of RollersSingle
Nuts,Bolts and ConnectorsMild Steel
Side CoverMild Steel
Overal FinishPowder Coated
CuttingCNC
Motor Power in kw1
Dimension3200 x 1400 x 1250
FoundationNot Required
LogoStarfish Engraving with LED Lidhts
Motor BrandOwn Brand
Back CoverMild Steel
BendingCNC
Roller Dia in mm800
WeldingLaser MIG/TIG
Emergency SwitchYes
Base FrameMild Steel Channel
Volt415
Roller Length in mm2000
Pressure of Steam Mpa0.4-0.6
ModelSFWS8 2000
Steam Inlet in mm37
Side PanelMild steel
Shaft GlandPlumbe Block Bearing
Weight in Kgs900
Control BoxMild Steel with Lock
Front Panel ( Optional )Feather Touch
Main DrumStainless Steel 304 Grade
Supporting RollersMild Steel Covered with SS Sleeve
Temperature140°
Drying Spees RpmAdjustable Through VFD
Control PanelManually Operated by Switches
Speed of Ironing m/min7.5

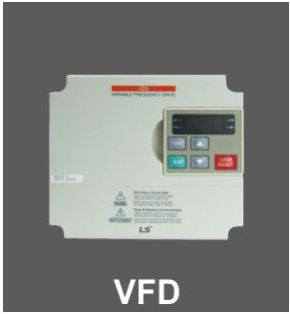

Ironer has Variable Frequency Drive for speed adjustment. Customer can change speed according to fabric thickness to enhance ironing efficiency. Ironing roller of Diameter 800 mm is made with Stainless steel. Roller uses Galvanization technology to extend the life.

Heating by using stainless steel cylinder shows good effect. Maximum touchable area 300 Degree roller circle effectively increase work area and improve ironing speed, heat energy and reduce the Running cost.

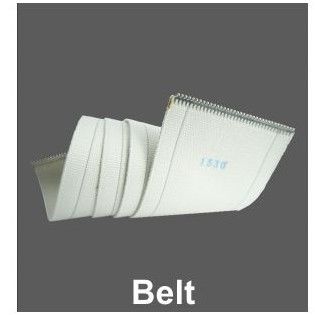

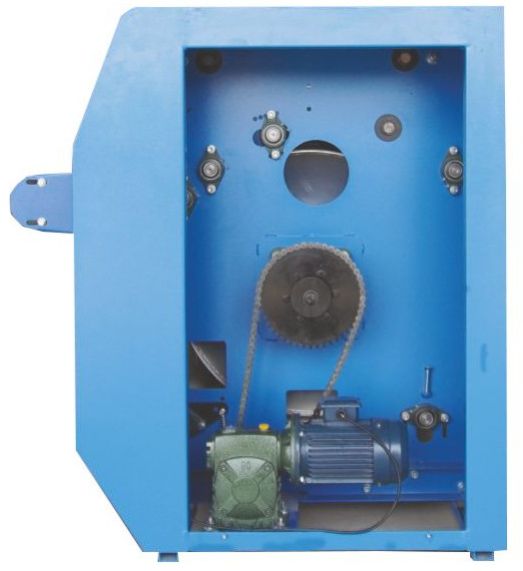

Drive motor linked with gear box will ensure stable running of roller. The main machine made by cutting laser machines and welded with high quality welding will provide the elegant look, smooth running, Accurate transmission, quality running and long life span. Ironer belt of best quality which withstand high temperature. Compact structure saves a lot of space by small covering area.

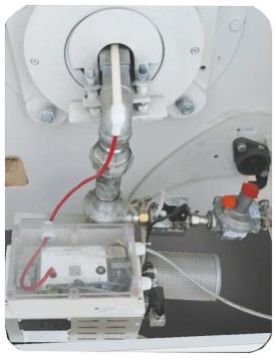

Several types of heating type by outside connecting steam, gas and electric are available. Also available with Return feed and Rear return is optional.

Note: Above mentioned price is based on the adult care service plan Tax and Transportation Charges are Extra). Prices may vary according to the size and models. [Please contact us to get the latest price & know more about our service plan]
