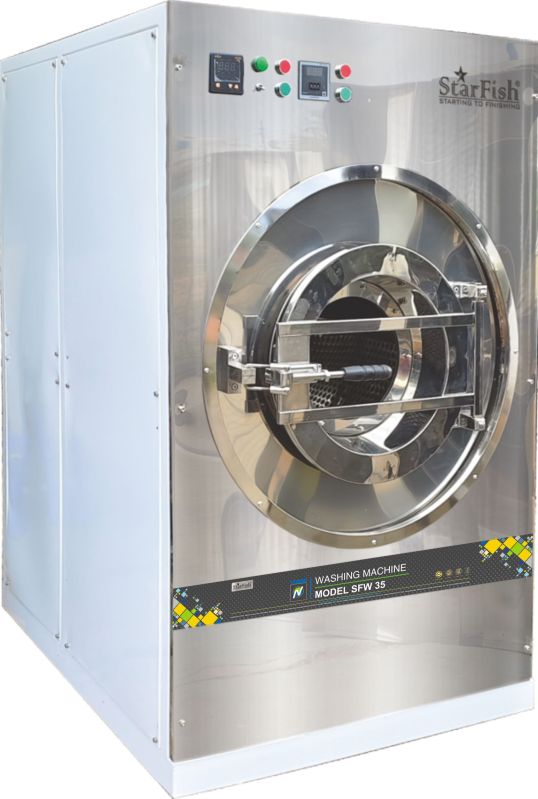

Starfish Industrial Front Loding Washing Machine

₹ 2.20 Lakh / piece

Brand NameStarfish
Motor BrandABB/Equivalent
Safety MeshMild Steel
Forward/reverseAdjustable 0-60 Seconds
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Product Details

Brand NameStarfish
Shaft GlandBearing with Gland Covered by Asbestos Rope
Control BoxMild Steel with Knob
Water Inlet in mm25
Drain Outlet in mm75
Rpm32
Drum Volume in Liter345
Water levelSee through Gauge glass
Door Open in mmØ550
Outer DrumStainless Steel 304 Grade
VFD(Optional)Adjustable Drum Rotation 0-32 RPM
Motor BrandABB/Equivalent
PerforationPunching Press
BendingCNC
Door Open Cut OffLimit Switch
Heater in Kilowatt9

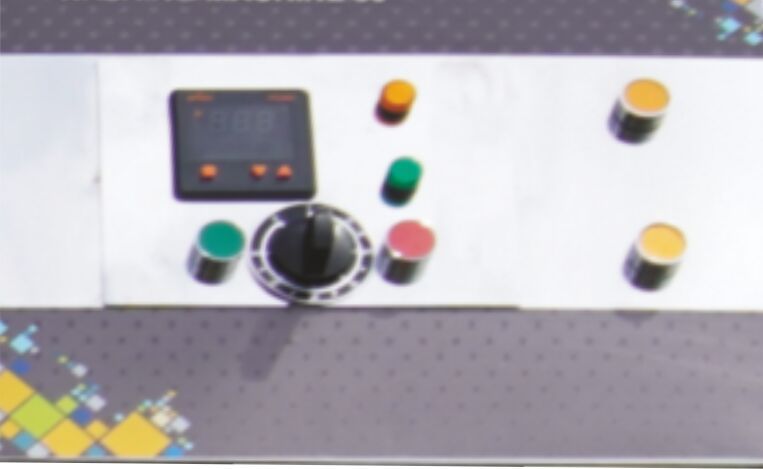

Control panelManually Operated Switch Controls
Belt AdjustmentScrew Rod
Side CoverStainless Steel 202 Grade
Base FrameMild Steel Channel
Dry Weight in Kg35
Nuts, Bolts And ConnectorsMild Steel
Motor Power in kw1.5
Weight in Kgs500
Back PlateMild Steel Plate Covered by Stainless Steel 202 Sheet
CuttingCNC
LogoStandard Sticker
BeatersTo improve wash Quality
Steam Consumption Kg/Hr30
Over All Dimension in mm1200 x 1250 x 1630
Drum and Side panel JointBy using Asbestos Sheet
Temperature0-60° Controlled by Digital Temperature Sensors
WeldingMIG/TIG
Washing Time0-60 min controlled by Timer
FoundationNot Required
Overall FinishGloss
Volt415 / 3Ø
DoorStainless Steel 304 Grade
Liquor Ratio01:10
Forward/reverseAdjustable 0-60 Seconds
ModelSFW 35
Drum Size in mmØ920 x 520
Safety MeshMild Steel
Inner DrumStainless Steel 304 Grade

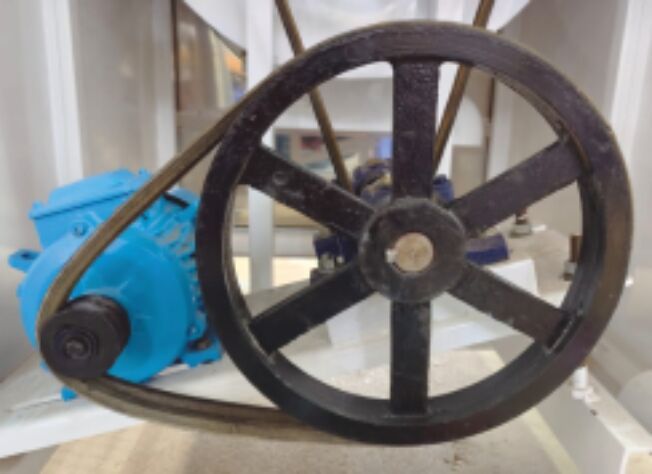

Front-loading washers are mechanically simple compared to top-loaders, with the main motor normally being connected to the drum via a grooved pulley belt and large pulley wheel, without the need for a gearbox.

The action of a front-loading washing machine is better suited to a motor capable of reversing direction with every reversal of the wash basket.

The Front Loading Laundry Machine features a high-quality stainless steel inner and outer basket, with an optional 316 grade for dyeing.

These economically-priced units suit various laundry, textile processing, and dyeing applications.

They are available in Steam, Electric, and Thermic fluid options.

Heating and Water level are controlled through electric and pneumatic solenoid valves (Optional) .

The Door glass allows easy viewing even when the machine is running.

There is an option for variable frequency controlled drive(Inverter) for required cylinder speed.

Specially designed stuffing box filled with gland packing and silicon seals. No chances of leakage.

Our primary objective in designing this machine is to

Reduce water consumption.

Minimise steam usage.

Optimise processing time while increasing loading capacity.

Enhance durability.

Decrease reliance on manpower.

Note: Above mentioned price is based on the adult care service plan (Note: Tax and Transportation Charges are Extra). Prices may vary according to the size and models. [Please contact us to get the latest price & know more about our service plan]
