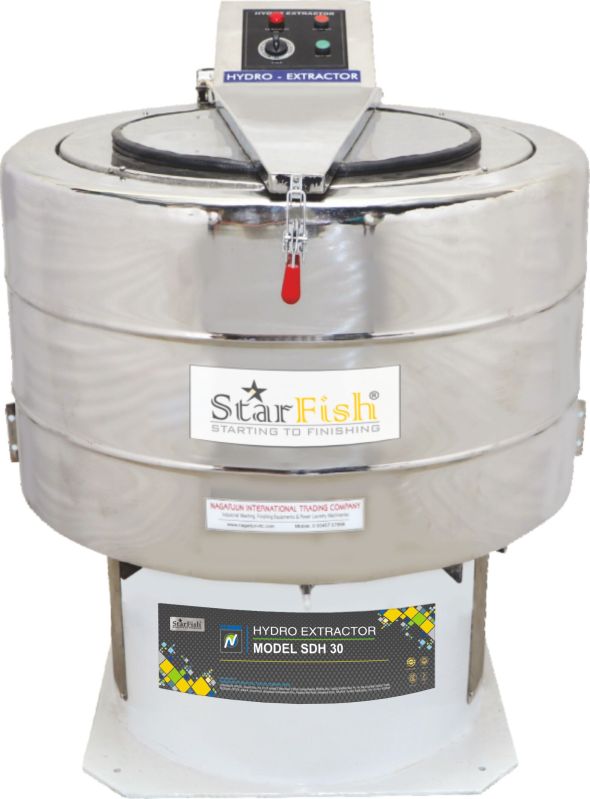

Starfish Industrial Hydro Extractor, Model Number : Sdh 30

₹ 1.53 Lakh / piece

Brand NameStarfish
Model NumberSDH 30
Back CoverStainless Steel 202 Grade
Weight in Kgs400
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Product Details

Brand NameStarfish
Model NumberSDH 30
Spring AdjustmentScrew Rod
Base PlateMild Steel Sheet
PerforationPunch Press
Weight in Kgs400
SpringHelical Extension
WeldingMIG/TIG
Base CoverMild Steel Sheet
Overall FinishGloss with Powder Coated
BendingCNC
Drum Volume in Liter115
Drum RPM1000
BreakingElectrical
Extraction Time0-15 min controlled by timer
Door Open Dia in mm540
Motor BrandSpecially Designed by us
Drain Outlet in mm75
Drum Size in mmØ700 x 300
LogoStandard Sticker
Dry Weight in Kg30
Liquor Ratio01:04.5
Control BoxStainless Steel 202 Grade
Inner DrumStainless Steel 304 Grade
Rpm1000
Motor Power in kw4
CuttingCNC
VFD (Optional)Adjustable Drum Rotation 0-1000 RPM
Door Open Cut OffLimit Switch
Drum with MotorDirectly Connected with Bearing
FoundationRequired
Control panelManually Operated by Switches
Volt415 / 3Ø
Nuts, Bolts And ConnectorsMild Steel
Centrifugal Effect (%)70-75
Over All Dimension in mm940 x 1140 x 1100
DoorStainless Steel 202 Grade with Lock
Outer DrumStainless Steel 304 Grade
Back CoverStainless Steel 202 Grade

Our Industrial Hydro Extractor is compact and requires less maintenance with all stainless Steel inner and outer drum of 304 Grade. The machine requires less operation with a silent vibration during running.

Our Hydro extractors are solid and reliable equipment functioning on the unique principle of centrifugal force. Complete water extraction up to 75%, ensuring very low moisture retention. This reduces drying time considerably. Safety features are incorporated in the machine like automatic stoppage of the basket while lifting the top door.

An Auto timer, Auto stop through DC injection brake ensures immediate machine stoppage at any required time. It is self balancing and is fitted with a single phase prevented and motor protecting relay for safety and easy maintenance.

Note: Above mentioned price is based on the adult care service plan (Note: Tax and Transportation Charges are Extra). Prices may vary according to the size and models. [Please contact us to get the latest price & know more about our service plan]
