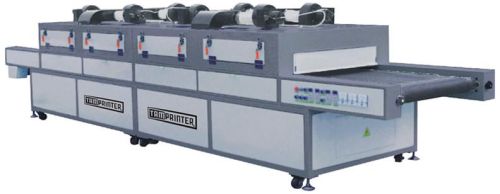

Industrial Infrared Tunnel Furnace, Brand Name : tamprinter

We are offering TM-IR1500-15 IR far-infrared Drying conveyer:
L*W*H 15.15*1.75*1.24M
sus Belt to earth 0.75M
Total wattage 70KW
Wind fan wattage 150W220V*20
Conveyer motor wattage 90W1P220V
ConveyEr speed 0~25mmin
Speed adjustment Stepless
Heater Lamp wattage 1.5Kw220V×45pcs
Max height of production 100mm
Weight 2400kg
Conveyer width 1500mm
Entering length 1m
Heat area 10m
Cool area Length 3m
Exit length 1m
Total Length 15m
15m glass infrared tunnel dryer Technology
Tamprinter Infrared Convection Oven ( shortwave )
1 imported shortwave infrared light radiation heating tube furnace used in all mirror panel system , equipped with special light tube reflector , can be 100% of all light reflection to the surface.
(2) using a uniform hair dedicated exclusively internal circulation duct temperature is very uniform.
3 equipped with imported light pipe dedicated controller, the frequency of light waves even control, the light pipe 100% to play full-wave energy, using current stable of 100% energy saving effect.
4 stainless steel chain and belt driven , easy to go astray , to load heavy metal category of products, with a special adjustment of the speed and stability.
5 light wavelength 0.76-1.6um, the strongest penetration , suitable transformer plant , electrical plant and other metal coil dipping baked or roasted dispensing electronic products .
Tamprinter Infrared Convection dryer ( MW )
1 medium-wave infrared light tubes imported radiant heating furnace used in all mirror panel production, with special reflector tube light , can be 100% of all light reflection to the surface.
(2) using a uniform temperature of the inner loop hair exclusive special duct temperature is very uniform.
3 equipped with imported light pipe dedicated controller, the frequency of light waves even control, the light pipe
