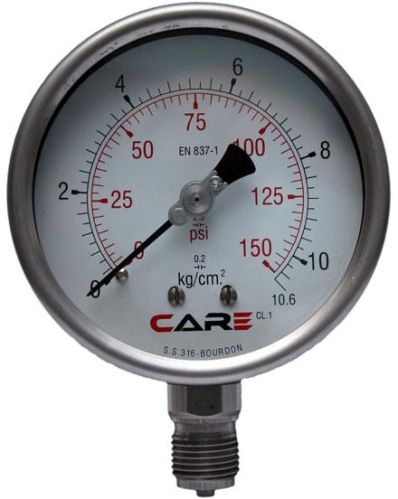

Industrial Pressure Gauge

ApplicationChemical & Petrochemical, Plastic & Paper Pneumatic Control System, Air conditioning
Scale Range0.. V acuum to 700 kg/cm2 & above on request
Accuracy1%
Thread Connection1/8″ , 1/4″, 3/8″, ½ ” BSP & NPT, M-10, M-12, M-20
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Product Details

Scale Range0.. V acuum to 700 kg/cm2 & above on request
Accuracy1%
Thread Connection1/8″ , 1/4″, 3/8″, ½ ” BSP & NPT, M-10, M-12, M-20
ApplicationChemical & Petrochemical, Plastic & Paper Pneumatic Control System, Air conditioning
OptionalLiquid Filled
Pressure ElementsBourdon Tube
Wetted PartsBrass, SS 304 and other material on request
Nominal Size (mm)40,50,63,80,100,150 ,250
Mounting of GaugeBottom, Surface, Back, Panel with 3 holes, Panel with bracket
Case and BezelDrawn steel, SS 304
DiaphragmNil

APPLICATIONS: With Liquid-filled case for applications with high dynamic pressure liquid media that ill. Pulsations or vibration suitable for corrosive environments and gaseous or not obstruct the pressure system.
Process Industry: Chemical / Petrochemical, Pow er Station, Mining, on and off shone, environmental technology, mechanical engineering and plant construction.
Features: Design : EN387-1,
A gency Approvals : CE
Dial : 4” (100 mm.), 6” (150 mm.), 8” (200 mm.), white aluminum,
Case : SS_304 or SS_316 (SS=Stainless Steel).
Window : Plain Glass or Safety Glass.
Pointer : Black aluminum, fixed or adjustable. Wid e selection of connections and pressure ranges. Crimped ring or bayonet bezel.
Accuracy : 4”, 6”, & 8” : ± 1.0% (± 1.6% with filling)
