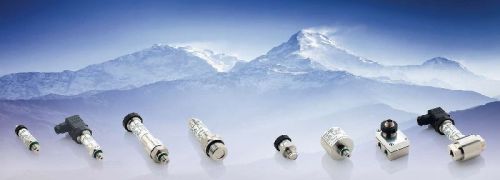

    Industrial Pressure Transmitter

    Industrial Pressure Transmitter

    ₹ 12,000 - ₹ 45,000 / Piece
    Get Latest Price
    • MOQ1 Piece(s)
    • Accuracy0.3 %
    • Process-temperature-40 - 100 °C
    • Operating voltage12 - 36 V DC
    • output4 - 20 mA
    • Supply TypeExporter, Supplier, Retailer, Importer, Trader
    • Preferred Buyer Location Anywhere in India
    View More Details
    Send Enquiry

    Company Information

    Innovatec Systemsverified-icon
    location Kondhwa, Pune, Maharashtra
    4.5/5fill iconfill iconfill iconfill iconhalf icon(2)
    View Number
    • calendar Member Since 8 Years
    • building Nature of Business Trader
    • gst icon GST No. 27AAZPI9506L1ZU

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details
    View Company Details

    • Product Details

    • Company Details

    no_img_icon

    • Accuracy0.3 %
    • Ambient temperature-40 - 80 °C
    • output4 - 20 mA
    • Process-temperature-40 - 100 °C
    • Process fittingThread from G½, ½ NPT
    • Operating voltage12 - 36 V DC
    • Measuring-range Pressure-1 - 60 bar
    • Process-pressure-1 - 60 bar
    • Ambient, storage and transport temperature-40- +80 °C (-40 - +176 °F)
    • Threaded-connection≥ G½, ≥ ½ NPT
    • Deviation in characteristics0.3 %

    Application Area : The VEGABAR 14 pressure transmitter can be used universally for measurement of gases, vapours and liquids. The small pressure transmitter offers maximum reliability and operational safety. The VEGABAR 14 is an economical solution for a number of applications in all industries.
    Your benefit

    • Low maintenance costs thanks to wear-free ceramic measuring cell
    • High plant availability through maximum overload and vacuum resistance of the ceramic measuring cell
    • Price-favourable version with small mounting dimensions


    Function :  The heart of the pressure transmitter is the pressure measuring cell transforming the pressure into an electrical signal. This pressuredependent signal is convereted by the integrated electronics into a standardized output signal. Sensor element is the ceramic CERTEC® measuring cell with excellent long-term stability and high overload resistance.
    Materials :  The wetted parts of the instrument are made of 316L, Duplex, PVDF or sapphire-ceramic®. The process seal is available in FKM, EPDM and FFKM
    Housing versions :  The housing is equipped with plug connector according to ISO 4400, M12 x 1 or with direct cable outlet. It is available with protection ratings up to IP 67.
    Electronics versions : The instrument has a 4 - 20 mA signal output.
    Materials,-wetted-parts

    • PVDF
    • 316L
    • Duplex (1.4462)


    Seal-material

    • EPDM
    • FKM
    • FFKM


    Protection-rating

    • IP 67
    • IP 65
    • IP 68 (0.2 bar)
    • IP 68 (0.5 bar)


    Electrical Connection

    1. Voltage supply and signal output


    Download Detail File : Click Here

    Dimensions

    Dimensions

    1. Threaded version G½, manometer connection EN 837 with plug connection ISO 4400
    2. Threaded version G½, inner G¼ with direct cable outlet
    3. Threaded version ½ NPT, inner ¼ NPT with plug connection M 12 x 1

    Download Detail File : Click Here

    Operating Instructions


    Download Detail File : Click Here
