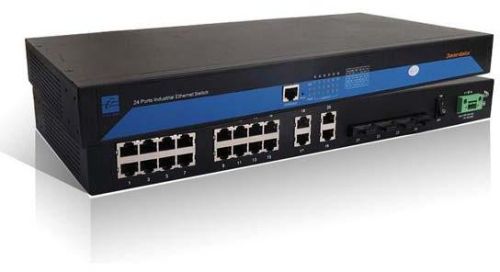

Industrial Rackmount Unmanaged Ethernet Switch (20TP+4F)

Industrial Rackmount Unmanaged Ethernet Switch (20TP+4F) is a type of plug-and-play industrial unmanaged redundant Ethernet switch that supports 20 10/100Base-T(x) + 4 100Base-FX interfaces. The best thing about Industrial Rackmount Unmanaged Ethernet Switch (20TP+4F) is it has no fan, low consumption and industrial grade design. Industrial Rackmount Unmanaged Ethernet Switch (20TP+4F) offered by us is CE and FCC certified. It can also provide wide temperature type in accommodation with limit temperature (-40 - 75^oC).

Features

• Support 20pcs RJ45 fast Ethernet ports and 4pcs fiber ports (SC or ST)

• Support IEEE802.3/802.3u/802.3x

• Support 10/100M, half/full duplex, MDI/MDI-X

• Support broadcast storm shield

• DC110/220V or AC100/240V 3 bits terminal block power input

• No fan, low consumption design

• IP30 protection, metal shell, 19" 1U standard rack

Specification

• Technology

  • Standard : IEEE802.3, IEEE802.3u, IEEE802.3x

  • Flow control : IEEE802.3x

  • MAC address : 8K

• Interface

  • RJ45 Ports : 10/100BaseT(X) auto connection, Full /Half duplex or force work mode, and support

  • MDI/MDI-X connection

  • Fiber Ports : 100BaseFX ports (SC/ST optional)

  • LED indicator : PWR, SYS, Link/ACT

• Power

  • Input power : 110~220VDC (100~300VDC)Or 100~240VA C (85~264VAC)

  • Input current : 0.25A (@110VAC/VDC)

  • Connector : 3 bits terminal block

• Environmental

  • Operating Temperature : -40^oC to 75^oC

  • Storage Temperature : -45^oC to 85^oC

  • Relative Humidity : 10 to 95% (non-condensing)

• Mechanical

  • Shell : IP30 protection, metal case

  • Installation : 19” 1U rack

  • W×H×D : 441.6mm×44.6mm×206.9mm

• Approvals

  • EMI : FCC Part 15, CISPR (EN55022) class A

  • EMS : EN61000-4-2 (ESD), Level 3

  • EN61000-4-3 (RS), Level 3

  • EN61000-4-4 (EFT), Level 3

  • EN61000-4-5 (Surge), Level 3

  • EN61000-4-6 (CS), Level 3

  • EN61000-4-8, Level 5

  • Shock : IEC 60068-2-27

  • Free Fall : IEC 60068-2-32

  • Vibration : IEC 60068-2-6

  • Warranty : 5 years

  • Approvals : FCC, CE, RoHS approvals
