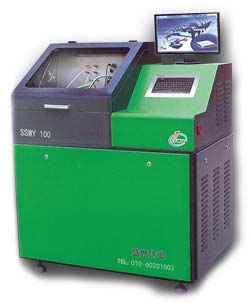

Industrial Test Bench

Our Industrial Test Bench is largely demanded in the market due to its excellent performance profile. The offered Industrial Test Bench is highly effective and efficient to measure the full load point, the point of discharge, pre-spray points, low idle and the oil return parameters and intelligence to determine the injector performance, reporting and analysis. It is easy to operate and highly convenient. We are a prominent Industrial Test Bench Exporter and Supplier from Beijing, China. We procure them from reputed manufacturers of the domain. Buy them from us at highly affordable prices.

Performance Profile :

• Fully automatic operation, to measure the full load point, the point of discharge, pre-spray points, low idle and the oil return parameters and intelligence to determine the injector performance, reporting and analysis.
• According to the high-pressure common rail injector model, automatically call the standard procedures for measurement.
• Can simultaneously test two injectors.
• Industrial computer control (windows XP system) large screen LCD display.
• Computer ECU with automatic safety protection features.
• Test software and database to facilitate the upgrade, the benchmark calibration of test equipment, and convenient maintenance.
• Clamping and easy operation, high efficiency.

Note : Our equipment need to replace the filter, filter 250-300 hours. Select the filter, as far as possible to select high-quality filter. Add style modify the injector in the database changes than larger, please use the SD card backup data, to avoid system anomalies caused by the loss of individuals to modify the database.
Technical Features :

• Dimensions : L*W*H (mm) 1280*680* 1580
• performance parameters
• spindle speed 0-3000 rev / min
• oil temperature control system for closed-loop design.
