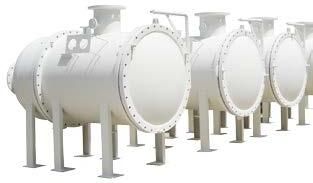

rizonflow®stainless steel filter housing
Â
design of rizonflow® stainless steel filter housing is to be used for
installation of high flow filter cartridges. Compared to usual type of
vessels, it allows installing larger size of filter cartridges and it requires
less cost. The horizontal design makes a quick and easy change out for
filter cartridges.
Â
features & benefits
specification
• it affords higher filter pressure, and provides variety type of pressure rating.
• unique supporting net tube structure permits safe use of filter cartridge
• horizontal & vertical installing ways are provided, easy installation and maintenance for customers.
Â
specification
| design pressure | 0.6mpa(6.0bar)0.75mpa(7.5 bar)1.0mpa(10bar) (note: for more pressure ratings, pls don’t hesitate to consult our company) |
| maximum temperature | 120° c |
| filtration media | common fluid |
| sealing type | o-ring and flat gasket |
| sealing material | buna-n rubber/silicon rubber/fluorine rubber |
| connector | thread mouth/coupling/standard flange(gb,hg,din,ansi,etc) |
| applicable filter cartridge | rizonflow/rizonflow+/realmax filter cartridge |
| surface treatment | abrasive blasting/mechanical polishing/electro polishing |
| material | ss304 ss316 |
