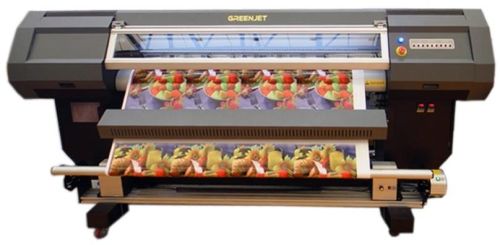

Indutrial Eco-solvent Printer

₹ 15.39 Lakh / 19000 19000 Set

MOQ1 Set(s)
Resolution1440dpi
Printing Width1.6/1.8m
Color6 Color (K Y M C Lc Lm)
Printhead TypeKonica 512 14pl
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

we offer indutrial eco solvent printer. printing technology drop on demand, piezoelectric inkjet print heads konica minolta industrial jetting assemblies. media width 1850 mm (74....

Company Information

Member Since 12 Years
Nature of Business Manufacturer
Year of Establishment 2004

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

we offer indutrial eco solvent printer.
printing technology
drop on demand, piezoelectric inkjet
print heads
konica minolta industrial jetting assemblies.
media
width
1850 mm (74 in)
thickness
maximum 1.0 mm (39 mil) with liner
roll outer diameter
maximum 300 mm (12 in. )
roll weight
maximum 60 kg
core diameter *1
76.2 mm (3 in. )
printing width *2
maximum 1, 840 mm (72.5 in )
inks
types
eco solvent mild solvent
colors
six colors (cyan, magenta, yellow, and black, lc, lm)
printing resolution (dots per inch)
maximum 1, 440 dpi
distance accuracy *3
error of less than ± 0.3 % of distance traveled, or ± 0.3 mm, whichever is greater
media heating system *4
print heater and preheater, setting range for the preset temperature: 30 to 60° c
dryer, setting range for the preset temperature: 30 to 60° c
connectivity
high speed usb
power requirements
ac 200 to 240 v ± 10%, 15 a, 5060 hz
dimensions (with stand)
3, 000(w) x 1000(d) x 1, 400 (h) mm
weight (with stand)
300kgs
environmental
power on
temperature: 15 to 32° c
humidity: 35 to 80%rh (non-condensing)
power off
temperature: 5 to 40° c
humidity: 20 to 80%rh (non-condensing)
speed
240 x 720
72 sqmhr (km512) 36 sqmhr (km256)
240 x 1080
48 sqmhr (km512) 24 sqmhr (km256)
240 x 1440
36 sqmhr (km512) 18 sqmhr (km256)
360 x 720
50 sqmhr (km512) 25 sqmhr (km256)
720 x 720
26 sqmhr (km512) 13 sqmhr (km256).

Additional Information

Payment Terms T/T
Port of DispatchSHANGHAI
Packaging DetailsPrinting technology Drop on Demand, piezoelectric inkjet Print heads Konica Minolta Industrial Jetting Assemblies. Media Width 1850 mm (74 in) Thickness Maximum 1.0 mm (39 mil) with liner Roll outer diameter Maximum 300 mm (12 in. ) Roll weight Maximum 60 kg Core diameter *1 76.2 mm (3 in. ) Printing width *2 Maximum 1, 840 mm (72.5 in ) Inks Types Eco Solvent / Mild Solvent Colors Six Colors (Cyan, Magenta, Yellow, and Black, LC, LM) Printing resolution (dots per inch) Maximum 1, 440 dpi Distance accuracy *3 Error of less than ± 0.3 % of distance traveled, or ± 0.3 mm, whichever is greater Media heating system *4 Print heater and preheater, setting range for the preset temperature: 30 to 60° C Dryer, setting range for the preset temperature: 30 to 60° C Connectivity High Speed USB Power requirements AC 200 to 240 V ± 10%, 15 A, 50/60 Hz Dimensions (with stand) 3, 000(W) X 1000(D) X 1, 400 (H) mm Weight (with stand) 300Kgs Environmental Power on Temperature: 15 to 32° C Humidity: 35 to 80%RH (non-condensing) Power off Temperature: 5 to 40° C Humidity: 20 to 80%RH (non-condensing) Speed 240 X 720 72 sqm/hr (KM512) / 36 sqm/hr (KM256) 240 X 1080 48 sqm/hr (KM512) / 24 sqm/hr (KM256) 240 X 1440 36 sqm/hr (KM512) / 18 sqm/hr (KM256) 360 X 720 50 sqm/hr (KM512) / 25 sqm/hr (KM256) 720 X 720 26 sqm/hr (KM512) / 13 sqm/hr (KM256)
Delivery Time7-14 Days
