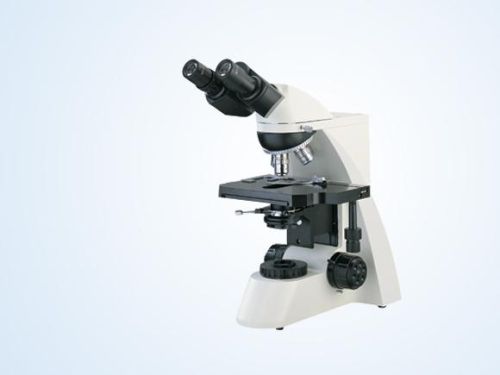

Infinity Biological Microscope

We are offering infinity biological microscope. Ml30-u is a biological microscope available in trinocular and binocular. It is equipment with infinity optical system and wide filed eyepieces. Halogen lamp in 6v 20w provides enough brightness for your microscope imaging observing. The microscope quite suitable for laboratory, universities, clinics and industry material analysis.
Features of ml30-u biological microscope
with wide field eyepieces and infinity plan achromatic objectives, the field of view is widely and clear
coaxial coarsefine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm
using kohler illumination with 6v 20w halogen lamp with brightness control
simple polarizer can be added
parameters :
eyepiece
wide field wf10x,fn:20mm
objective
infinity plan achromatic objective
pl 4x0.10
pl 10x0.25
pl 40x0.65 (spring)
pl 100x1.25 (spring, oil)
eyepiece tube
trinocular, inclined 30°，pupil distance：55-75mm
focus system
coaxial coarse and fine adjustment, with adjustment limit stopper, minimum graduation in fine movement: 2μm
nosepiece
quadruple (fixed nosepiece with backward inclined)
stage
double layer mechanical (size:210mm*140mm,moving range:75mm*50mm)
filter
blue filter,ground glass
condenser
abbe condenser na.1.25 rack & pinion adjustable
illumination system
6v 20w halogen lamp with brightness control with field diaphragm
camera adapter
1x c-mount adapter
spare bulb
6v 20w
power cord
standard three-plug
