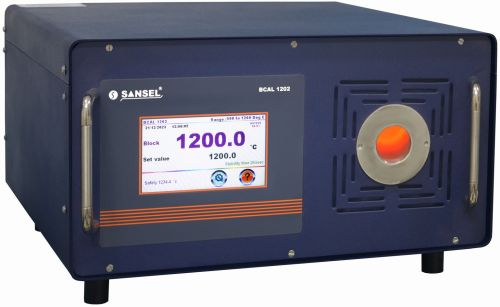

SANSEL Electric Infrared Black Body Calibrator BCAL 1202

SANSEL Model BCAL 1202, Black body Calibrator is used to measure the accuracy and performance of non-contact Thermometers. Infra red thermometer & online pyrometer calibration is performed by comparison of the temperature measured by UUC and target temperature indicated by the calibrator or using standard pyrometer.

Focus the Unit Under Calibration (UUC) to be Calibrate to the target point given in BCAL 1202. Set the Temperature from the Touch screen display. Both True and set Temperature can be read. When Stabilization Occurs, Simply Read the Temperature and re-Calibrate the UUC.

Specifications:

• Model : BCAL 1202
• Display : 4.3 inch True TFT DISPLAY with touch screen
• Temperature Range : 500 to 1200°C
• Resolution : 0.1 °C
• Stability  : ± 0.2 °C
• Radial Uniformity : Better than ± 1% of reading
• Temperature Read out : °C
• Heating time : 60 min (Amb. to 1200 °C)
• Cooling time : 120 min (1200 to 100 °C)
• Stabilization time : 30 minutes
• Aperture area : 25 mm
• Emissivity : 0.950
• Power supply : 230V AC ± 10% / 50Hz (Optional 110V AC)
• Power Consumption : 2200 VA
• Overall Dimension in mm : 350 x 352 x 210 (L x B x H)(Approx.)
• Instrument Weight : 12 kg(without carrying case)(Approx.)
