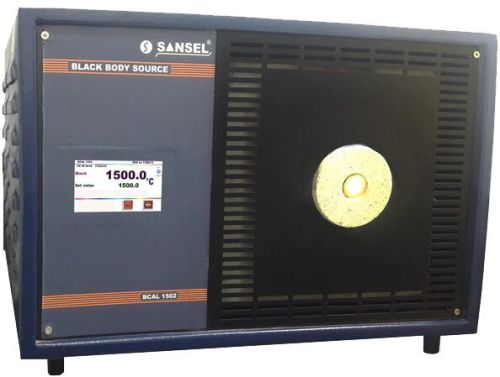

SANSEL Electric Infrared Black Body Calibrator BCAL 1502

“SANSEL” Series BCAL 1502 is a Micro controller Based Precision Temperature Calibrators Generates True Reference Temperature. The Temperature Controller of the Calibrators Uses a Auto Tune PID Control Algorithm. Infra red thermometer & online pyrometer calibration is performed by comparison of the temperature measured by UUC and target temperature indicated by the calibrator or using standard pyrometer. Focus the Unit Under Calibration (UUC) to be Calibrate to the target point given in BCAL 1502. Set the Temperature from the Touch screen display. Both True and set Temperature can be read. When Stabilization Occurs, Simply Read the Temperature and re-Calibrate the UUC.

Specifications:

• Model: BCAL 1502
• Display: 4.3 inch True TFT LCD Display with Touch screen
• Temperature Range: 500 to 1500 °C
• Resolution: 0.1°C
• Stability: ± 1°C
• Radial Uniformity: ± 1% of reading
• Bath Temperature Control: Digital Temperature Controller with Auto Tune PID Algorithm
• Temperature readout: °C
• Aperture area: 30mm
• Emissivity: 0.950
• Power supply: 230V AC ± 10% / 50Hz (Optional 110V AC)
• Power Consumption: 4 KVA
• Dimension (W*D*H) (Approx.): 580mm W x 450mm D x 390mm H
• Instrument Weight (Approx): 45 kg
