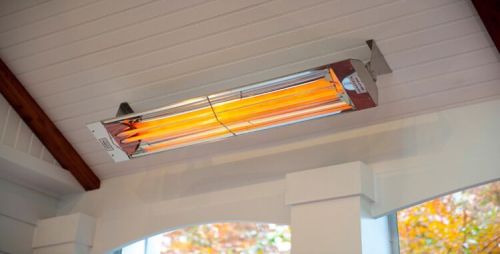

Contact SupplierCeramic infrared heating elements are efficient, robust heaters which provide long wave infrared radiation. The ceramic heaters and infrared heaters are used in a diverse range of industrial and engineering applications such as heaters for thermoforming, packaging and as heaters for paint curing, printing and drying. They are also used very effectively in infrared outdoor heaters and infrared saunas. Ceramic elements produced by volex include ceramic trough elements, ceramic hollow elements, ceramic flat elements, and ceramic infrared bulbs.
INFRARED HEATER – DETAILS:
Available from 250 to 800 watts
Iron-chrome aluminium resistance wire
Useful wavelength range: 2-10 microns
Recommended radiation distance is 100 to 200 mm
Dimensions: 245 x 60 x 36.5mm
Heater Voltage: 230 Volts standard
Average Operating Life-Up to 20,000 hrs
Supplied with 120mm ceramic beaded power leads
