Infrared IC Heater, Brand Name : puhui

we offer Infrared Ic Heater.

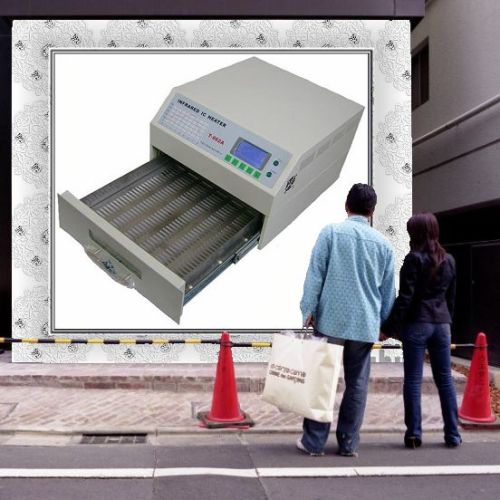

The T962a is a micro-processor controlled reflow oven. The device is powered by standard 110VAC 50/60HZ (220VAC Model is available). User interface is implemented by way of T962a input keys and an LCD display. Pre-Set heating Modes are selected by user interaction with thermal cycle progress observed on LCD display.
This self-contained reflow station allows safe soldering techniques and the manipulation of SMD、BAG and other small electronic parts mounted on a PCB assembly. The T962a may be used to automatically “re-flow” solder to correct bad solder joints, remove/replace bad components and complete small engineering models or prototypes.

A windowed drawer is designed to hold the work-piece. Thermal cycle accuracy is maintained by closed loop micro-computer control with infrared heaters, thermocouple and circulating air.

The T962a is simple to use, the soldering process is completely automatic defined by pre-defined thermal cycles
