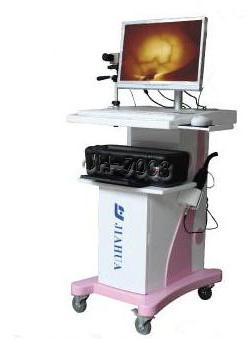

Infrared Mammary Gland Diagnostic Instrument, Brand Name : Jiahua

We are offering the infrared mammary diagnostic instrument emits infrared from the probe to pass through the mammary
glands and the high resolution ccd camera will take pictures of the light transmitting image of the mammary glands and send it to the computer. The clear mammary gland picture will then be shown on the high resolution screen after computerized image processing so to help doctors observe and identify the disease.
the infrared ray has a strong piercing ability into the human parenchyma and the hemoglobin in human blood
has a characteristic of absorbing the near infrared rays selectively. So when infrared light passes through the
mammary gland, the body part will absorb the near infrared ray and the image of the tissue with pathological
changes will show its depth, size, shapes, outlines and the direction and buckling distortion extent of the blood vessel on the screen to different extent. For example, the cancer image will show preferential absorption of the
infrared light while the benign pathological change absorbs less infrared light. Besides, malignant pathological
changes are usually accompanied by changing of the blood vessels so that the parenchyma image of different parts in the mammary gland will show different grey shades. These processed images will show the characteristics of the pathological changes.
the combination of those factors forms the imaging characteristics of the near infrared mammary diagnosis.
technical parameters:
1, grayscale: 256 8bit a, / d;
2, video signal output: amplitude 1vp-p, impedance of 75ã�â©;
3, analog signal input: standard television signal 1vp-p input, 525 lines / field or 625 lines / field;
4, hard drive storage capacity: 320g;
5, frequency: 200mhz;
6, the display color: 24 dynamic pseudo-color display, support dynamic pseudo-color coding;
7, camera minimum illumination: 0.1 lux;
8, camera resolution: 420tvl;
9, display: led;
10, wave length of infrared light: of 0.85ã�â¼m ã�â± 10%;
11, probe light power: maximum output is less than 0.2w, but not more than 1w;
12, light intensity of the probe 0-9-numeric display, which consists of 200 values promise continuously adjustable;
13, probe beam diameter: 14 ã�â± 1mm;
14, input power: ã¢ï¿½â¤ 350 va;
15, instrument type: type ii;
16, image printing method: support for color printing of ordinary copy paper, inkjet paper and photo paper;
17, image capture mode: four kinds of way acquisition:
foot switch, mouse, keyboard, probe key;
18, probe light source type: special infrared optical output, temperature rise, high brightness, long life, illumination
uniformity, colorful, realistic, and the light source does not produce heat;
19, system data exchange interface: the cd-rom, an external usb device;
20, image storage capacity: one million.depends on the hard drive capacity;
21, capture number of picture : default 20 every time, also can be set freely;
22, video features: continuous recording and movie playback functions;
23, the system power supply voltage: ac220 ã�â± 22v;
24, the system rated power: 300w;
25, operating temperature: 0 ã�â°c ~ 40 ã�â°c.
