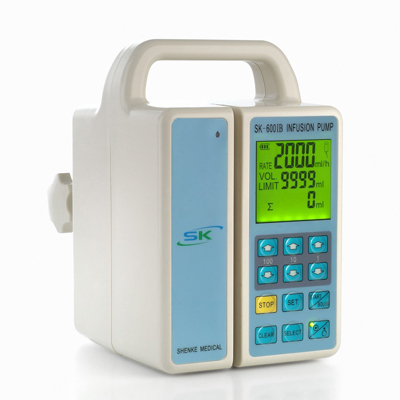

Infusion Pump

This device is used to administer prescribed doses of nutrients or medicines into the patient’s circulatory system. It can be arterial or intravenously used as well. The machine can inject controlled amount of medicines into the person’s body at set time intervals. There are three types of infusion pumps available with the manufacturer. They are:-

• A regular infusion pump
• Bolus: 600ml/h
• Flow rate range: 1-600ml/h
• Volume limit: 1-9999 ml
• Accuracy:±5％
• KVO flow rate: 1ml/h, keep vein open KVO rate
• Power supply: AC100-240V, 50/60 Hz, 25VA
• Water Proof: IP *I
• Battery: Rechargeable lithium polymer battery, 7.4 V 1650mAh
• Electrical safety: compliance with the requirements of IEC 60601-1.
• Maximum Power consummation is 25W
• Battery recharge: When the pump is connected to the AC power, the battery will recharge automatically. It takes around 8-14 hours to recharge fully, it can then run for more than 5 hours continuously.
• Fuse Type: 220V 2A*2，12V 2A*2
• Display or information: Flow rate, volume limit, accumulated volume, power indicator light, bed number, air occlusion.
• Alarm function: Infusion completion, occlusion, air bubble, low battery, control abnormal, no AC power supply, installation error.
• Max. size of outer shell: 120*140*190 mm-length* width* height
• Max. weight:＜2.5 kg
• Classification: Type B.
• Outer shell material is of ABS plastic
• operating condition: Environment temperature:+5℃- +40℃, atmosphere
• pressure 50-106kPa, related humidity 30%-90%
• Storage and transport condition: Environment temperature -15℃- +50
• Pressure 50-106kPa，relative humidity 30%-90%.
• Applicable infusion pipe: All standard infusion pipe use "double dove" to test
• EMC: Complies with IEC/EN60601-1-2 and IEC/EN60601-2-24.

A superior infusion pump with facilities like night mode working, body-weight mode conversion, 3 level occlusion alarm settings, dual-CPU monitoring system etc. Its details are as follows:-
