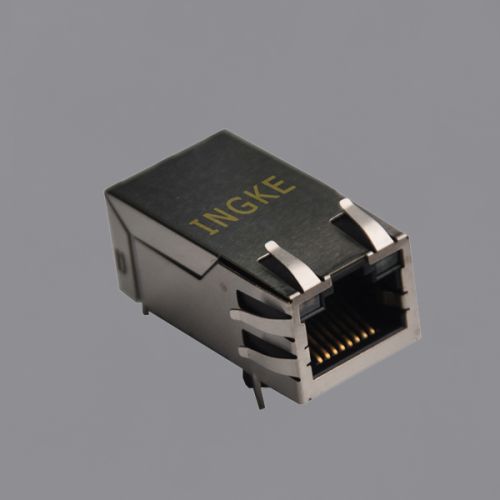

Ingke YKKU-1319NL 100% Cross JXK0-0190NL Single Port RJ45 Magjack Connectors

Ingke ykku-1319nl 100% cross jxk0-0190nl single port rj45 magjack connectors
part number : jxk0-0190nl
made in china: ykku-1319nl
original manufacturer:ingke technology
supply ability:5500k-pcsmonth
product category: modular connectors ethernet connectors
packaging :tray
connector type: rj45
number of ports :1
number of rows :1
applications : 101001000 base-t, automdix, power over ethernet+ (poe+)
mounting type : through hole
orientation: 90° angle (right)
termination :solder
led color: yellow, green
number of cores per jack : 8
shielding : shielded, emi finger
features: board guide
tab direction : up
contact material : phosphor bronze
contact finish : gold
operating temperature : -40℃~85℃
flammability rating: ul 94 v-0
contact finish thickness : 30µin (0.76µm)
shield material : copper alloy
housing material :thermoplastic
ingke technology mass production of the following models;
