Inground Luminaires

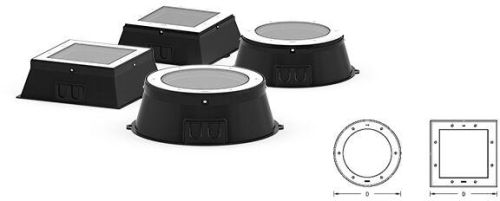

The large size shallow LED inground uplights. Round and square surface stainless steel 316 front ring for use in residential, shopping mall and pedestrian areas for illuminating squares, parks, gardens, sculptures, flag poles and trees. This product is available with a variety of light control attachments and asymmetrical distributions.
The luminaire rated as CLASS I with integral driver, available in asymmetrical light distribution for Type II, III , and IV. Colour temperature 3000K and 4000K, LED CRI >80 and life time 50,000 Hours.
Low copper content die-cast aluminium housing with a chemical chromatized protection before powder coating, ensuring high corrosion resistance. Power is provided through a single PG13.5 watertight cable gland. High efficiency optics and PMMA lens. Stainless steel fasteners in grade 316. Durable silicone rubber gasket and clear toughened glass 15mm. thick glass, 2000Kg. load is transferred by the housing to the foundation.
To ensure efficient drainage, gravel must be used to a depth of 450mm. and a width of 300mm. beneath the housing, and should also be placed around the luminaire. Vehicles with pneumatic tires can drive over the luminaire but the speed must not exceed 50Kmh. The distance between the floodlight and the illuminated surface should be at least 0.5m. Recessing box in high density polyethylene. Optional ADA anti slip surface.
