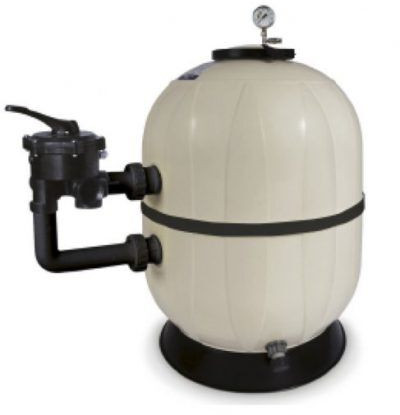

Injected Sand Filters “aquarius” Side Valve

Sand filter with 6 way selector side valve.
• Totally injection molded in polypropylene.
• Polypropylene spherical body; distribution with micro-hole pipe, anti-slip features with nozzles to ease the maintenance opera-tins.
• Automatic air bleed with upper filter base for double-ring filter to guarantee stability lid with pressure gauge seat and manual air bleed.
• Seal is guaranteed by clamps with butterfly valves and nut maintenance does not require tools.
• Polished and glazed wedges finish
• Draining micro-hole pipe distribution
• Working pressure max. 2.5 bar, Test pressure 4 bar.
• Lateral side connectors Ø50 mm (for 1 ½” valve) and Ø63 mm (for 2” valve).
• 3/4” filter discharge
• Standard: UNI 10637:2006 regulation for TYPE D categories
• Warranty: 5 years. Model

CODE DESCRIPTION

100100913 INJECTED SAND FILTERS “AQUARIUS” SIDE VALVE DIA 450MM WITH SIDE 6 WAY VALVE 1.5″

100100902 INJECTED SAND FILTERS “AQUARIUS” SIDE VALVE DIA 530MM WITH SIDE 6 WAY VALVE 1.5″

100100904 INJECTED SAND FILTERS “AQUARIUS” SIDE VALVE DIA 620MM WITH SIDE 6 WAY VALVE 1.5″

100100906 INJECTED SAND FILTERS “AQUARIUS” SIDE VALVE DIA 790MM WITH SIDE 6 WAY VALVE 2″
