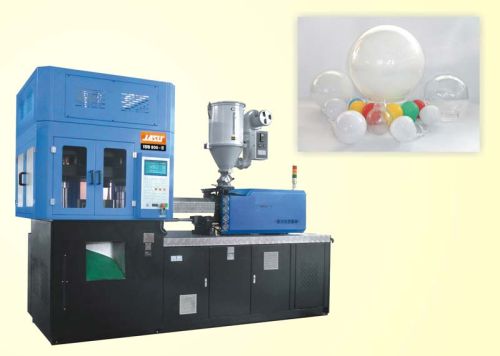

Injection Blow Molding Machine For Bulb Shells

we are offering injection blow molding machine for bulb shells.
jasu isb800-3 is a one stage injection blow molding machine (not from performs) for pet, pc and pp containers. the machine is capable of accepting 6 cavities. fully automatic, single step, injection stretch blow moulding machines produce containers from 0.3 litres up to 1 litres. widely used for manufacturing bottles for pharmaceutical, healthcare, food, beverages, cosmetics and other applications.
a horizontal three station indexing head contains injection, blowing and outfeed stations which operate simultaneously in a fully automatic cycle. highly efficient with low energy consumption.
suitable for use with a wide range of thermoplastic materials, including pet, pp and pc.
all machines are built to iso9001 standards and ce certified.
injection blow molding machine isb800-3 parameters
raw material pp,pc,pet,pctg,tritan
pressure system: 140kg
screw diamete: 40mm
max.injection weight: 195g
max injection pressure: 1504kgcm2
max. plasticating capacity: 14gs
injection mold clamping force: 60t
injection mold trip: 430mm
blowing mold clamping force: 80kn
blowing mold trip: one-side 60mm
rotary plate trip: 0-360o
stretching system trip: 150mm-170mm
ejection system trip: 150mm-170mm
injection mould dimensions: l500xw200
ejection trip: 150mm-170mm
max. height of bottle: 145mm
oil pump motor power: 18.5kw
barrel and mould heating power: barrel 9 kw,mould based on bottles
gross power: 30kw
working power: 3kw
center height: 1.4m
overall dimensions: l3.8xw1.45xh3.1m
weight: 5t
