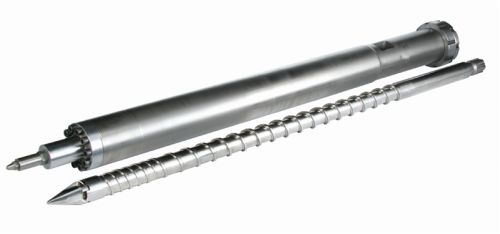

Injection Molding Screw Barrel

We offer injection molding screw barrel
specification:
screw diameter: φ20mm-φ220mm
mould clamping force:250t-3200t
shot weight:30g-30000g
qunying is one of the professional manufacturer and supplier for screw and barrel,and can make any specifcation of injection molding screw and barrel for haitian,demag,engel klauss maffei,nigro bossi,arburg,npm,boy,husky,fanuc,billion,sumitomo,nippon steel,toshiba,nissei,toshiba,mitsubishi ect.we also can supply all types of screw and barrel,bimetallic barrel according to clients' requirements.
injection molding screw and barrel technical specification:
depth of nitration case:0.4-0.8mm
hardness of nitration:hv900-1060 (hrc52°-58°)
roughness of the surface:ra 0.4μm
screw straightness: 0.015mmm
chrome plating thickness: 0.01-0.1mm
fully hard screw(wear-proof, corrosion-proof, heatproof, high-pressure proof and high-speed proof):hpt1 hpt2 hpt3
suitable plastic material: pp,pe,abs,as,ps etc.
detailed product description
1.bimetallic screw barrel
2.hardness:hrc58-68,hv960-1060
3.wear-resistant,anti-corrosion,longer lifetime
4.can be customized.
