Injection PET Chewing Snack Treat Making Machine

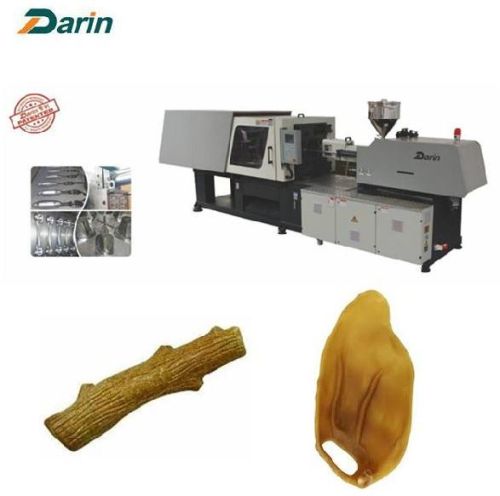

Injection Pet Chewing Snack Treat Making Machine Instruction DM-268 Injection Pet Chewing Snack Treat Making Machine is a special machinery to make dental care dog snacks. With such machine, various shapes and sizes can be made, such as frog, bone, animals, etc. The shapes are very lovely and will be acted as rewards to dogs and cats while they learn a new action or do well in some exercises and games.  Parameter Item Name of item Unit DM-268 Injection Unit Screw Diameter mm 55 Screw L/D Ratio Ratio 20 Injection Volume (Theoretical) cm 601 Injection Weight (PS) g 548 Injection Pressure Mpa 185.1 Injection Rate into Air g/s 223.7/276.1 Injection Stroke mm 256 Injection Speed Mm/s 95/116 Screw Speed rpm 201/246 Clamping Unit Clamping Force KN 2600 Clamping Stroke mm 550 Space Between Tie-bars mm×mm 580 x 580 Max. Mould Height mm 600 Min. Mould Height mm 250 Ejector Stroke mm 160 Hydraulic Ejection KN 68 Ejector Rob Quantity pcs 9 Others Max. Pump Pressure Mpa 17.5  Pump Motor Power kw 22/30 Heater Power kw 15.9 Hopper Volume L 50 Oil Pump Volume L 550 Machine Weight t 8.5 Mould Positioning Ring Diam mm 160 Sphere Radius mm SR10 Machine Dimension m x m x m 5.82 x 2 x 2 Sample picture Machine picture Client Visit Certificate Package
