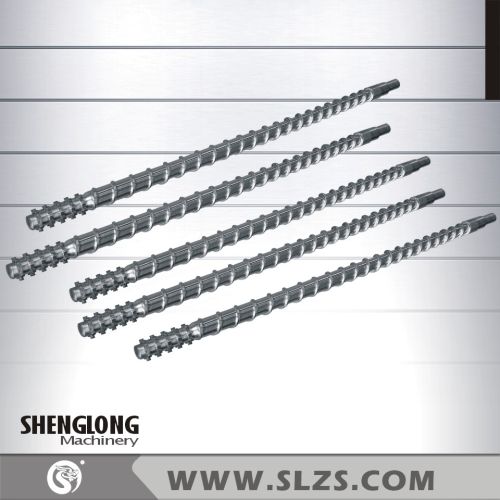

Injection Screw Barrel

₹ 89,500 / 3000 3000 Set

MOQ1 Set(s)
Alloy Depth0.8mm-3.5mm
Alloy HardnessHRC58-65
Chromium Coating Thickness:0.025~0.10mm
Depth of Nitrated Layer0.5-0.8mm
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

Company Information

Member Since 10 Years
Nature of Business Manufacturer
Year of Establishment 2000

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Alloy Depth0.8mm-3.5mm
Chromium Coating Thickness:0.025~0.10mm
Nitride Brittleness≤Grade One
Surface RoughnessRa0.4um
Alloy HardnessHRC58-65
Screw Straightness0.015mm
Nitride Hardness950-1050HV
Depth of Nitrated Layer0.5-0.8mm

We are offering injection screw barrel.
Screw diameter φ 20mm-220mm
mould clamping force 250t-3200t
shot weight 30g-30000g
alloy-steel of high-quality
1.38 crmoaia(jis sacm645)
2.42crmo(aisi4140)
3.9cr18mov
4.cw6mo5cr4v2
5.skd61
bimetallic alloy maerials:
1.fe-based alloy
2,ni-based alloy
3,co-based alloy
4.nico-based alloy
5.tungsten carbide
heat-treatment
nitriding treatment
electroplate hard-chrome
high-frequency quenching
spraying corrosion wear-resisting dual metal layers
vacuum quenching
